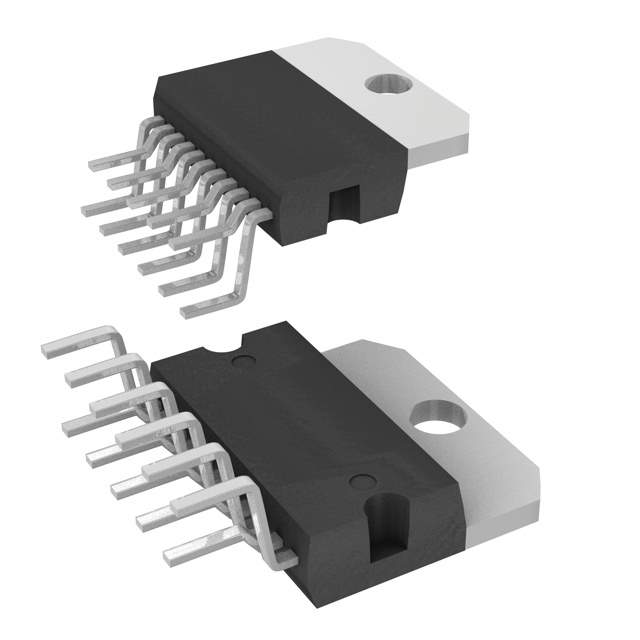

The TDA2005R from STMicroelectronics is a monolithic integrated circuit in a 15-lead Multiwatt package, designed for high-quality audio applications. This versatile audio amplifier IC is capable of delivering up to 20 watts of audio output power, making it suitable for car radio and simple home audio systems where the demand for audio quality and power efficiency is high.

Key Features

• High Output Power: Capable of providing 20W of output power into a 4-ohm load with excellent sound quality and minimal distortion.
• Bridge or Stereo Configuration: The TDA2005R can be configured in a bridge-tied load (BTL) to drive a single loudspeaker with increased power or in a stereo configuration for traditional two-speaker systems.
• Protection Systems: Equipped with multiple protection systems, including short circuit protection and thermal overload protection, ensuring reliable operation under adverse conditions.
• Minimal External Components: Requires very few external components, which simplifies design and reduces overall system cost.
• Flexibility: Offers flexibility in use, catering to various applications due to its split power supply operation.

Applications

The robustness and quality of the TDA2005R make it an ideal choice for a range of audio amplification tasks. Common applications include:

• Car radio amplifiers
• Simple home audio systems
• Self-powered speakers
• Boosters for existing audio systems

Technical Specifications

With a wide range of supply voltage from 8V to 18V, the TDA2005R provides designers with the flexibility to incorporate it into various system designs. The device also features a low crossover distortion, which is critical for maintaining audio clarity and quality.

Conclusion

The TDA2005R is a testament to STMicroelectronics' commitment to providing high-performance audio solutions. With its high power output, protection features, and minimal external component requirements, the TDA2005R stands out as a reliable and efficient choice for audio amplification needs.
