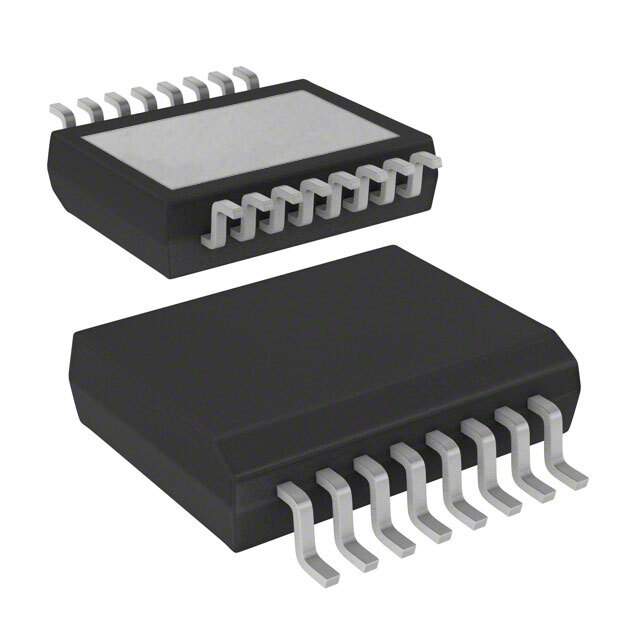

The VN7010AJTR is a cutting-edge, high-side driver manufactured by STMicroelectronics, designed to deliver robust performance in a wide range of automotive and industrial applications. This device is part of the VIPower M0-7 series and is housed in a compact and efficient PowerSSO-16 package, making it ideal for space-constrained environments.

Key Features

• Integrated Design: The VN7010AJTR integrates several features including an on-chip load current sensing and a diagnostic feedback through a current sense output, which provides over-temperature, overload, and short-circuit protection.
• High Voltage Capability: It operates over a wide voltage range, capable of handling load voltages up to 28V, making it suitable for 12V automotive systems.
• High Current Handling: With a continuous current rating of 40A, this device can manage substantial loads, which is essential for high-power applications.
• Thermal Shutdown: The VN7010AJTR includes a thermal shutdown feature to protect the device and the load in case of overheating.
• Multiple Protections: In addition to thermal protection, this high-side driver also includes protections against over-voltage, load dump, and loss of ground, ensuring reliable operation under adverse conditions.
• Control Flexibility: It can be controlled via standard 5V CMOS or TTL logic, providing ease of integration with a variety of microcontrollers and other control circuits.

Applications

The VN7010AJTR is ideal for driving a wide range of resistive, inductive, and capacitive loads such as lamps, motors, valves, and solenoids. Its robust design and protective features make it particularly well-suited for automotive applications including body control modules, light control, and HVAC systems, as well as for industrial automation tasks.

Quality and Reliability

STMicroelectronics is known for its commitment to quality, and the VN7010AJTR is no exception. It is designed to meet the stringent requirements of the automotive industry, including compliance with ISO 26262 for functional safety, as well as being qualified to AEC-Q100 standards for automotive electronic components.
