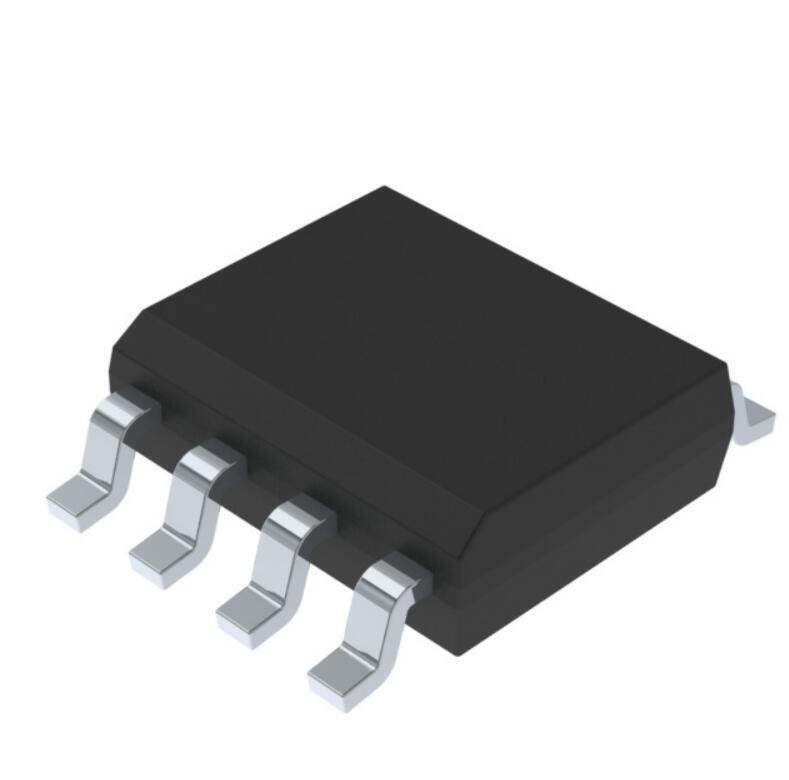

Introducing the VNS3NV04P-E from STMicroelectronics

The VNS3NV04P-E is a remarkable addition to STMicroelectronics' portfolio of power management devices, designed to deliver both performance and reliability for a wide range of applications. This advanced Power MOSFET is part of the OMNIFET II™ series, which is renowned for its fully autoprotected Power MOSFETs.

Key Features

• Linear Current Limitation: The VNS3NV04P-E offers a built-in linear current limiter, which is a critical feature for protecting the device from excessive current that could lead to damage. This ensures a higher level of reliability, especially in applications where current spikes are a concern.
• Thermal Shutdown: Safety is a priority with this device, and the thermal shutdown feature is a testament to that. It prevents the MOSFET from overheating, thus protecting the system from thermal-related failures.
• Short Circuit Protection: The device includes a robust short-circuit protection mechanism that guards against potential short circuits, ensuring the longevity and stability of both the MOSFET and the overall system.
• Overvoltage Clamp: Voltage spikes can be detrimental to electronic components. The VNS3NV04P-E comes with an overvoltage clamp that shields sensitive circuits from transient voltage increases.
• ESD Protection: Electrostatic discharge (ESD) can cause immediate or latent damage to electronic parts. With ESD protection, the VNS3NV04P-E is safeguarded against such discharges, enhancing its durability.
• Low Current Drawn from Input Pin: The device is designed to be energy-efficient, drawing minimal current from the input pin, which helps in reducing the overall power consumption of the system.
• Diagnostic Feedback through Input Pin: The VNS3NV04P-E provides diagnostic feedback that can be accessed through the input pin, allowing for real-time monitoring and troubleshooting of system performance.
• Direct Access to the Gate of the Power MOSFET (Analog Driving): This feature allows for more precise control over the device, making it suitable for applications that require fine-tuning of the power delivery.
• Compatible with Standard Power MOSFET: This device is designed to be compatible with standard power MOSFETs, ensuring easy integration into existing designs without the need for significant modifications.

Applications

The VNS3NV04P-E is ideal for a variety of applications that require high-efficiency power management with a robust set of protection features. Common applications include automotive systems, industrial controls, computer peripherals, and other electronic systems that demand reliable power switching capabilities.

With its combination of advanced protection features, energy efficiency, and diagnostic capabilities, the VNS3NV04P-E from STMicroelectronics stands out as a smart choice for designers looking to enhance system reliability and performance.
