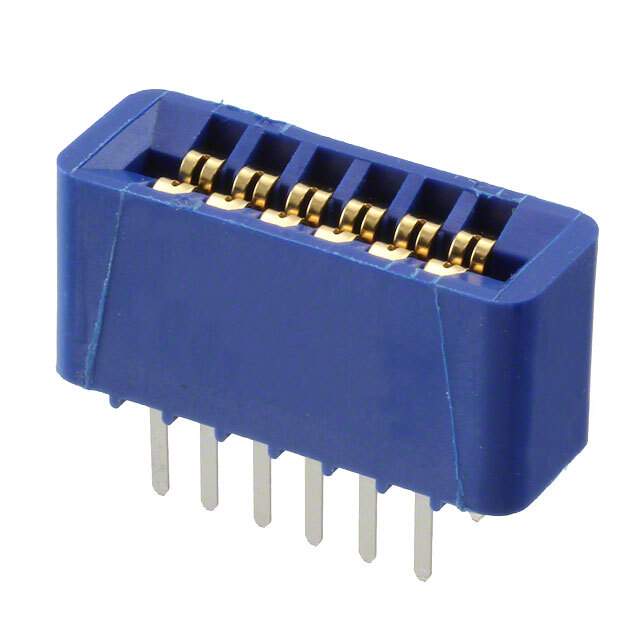

EBC06DRXN Real Image
Same model may have multiple batches, images only for reference.

EBC06DRXN

Part No EBC06DRXN
Manufacturer Sullins Connector Solutions
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FMALE 12POS 0.100 / 12 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Blue
Datasheet
EBC06DRXN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors>Edgeboard Connectors
Manufacturer Sullins Connector Solutions
Packaging Tray
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions/Bay/Row 6
Number of Positions 12
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.100" (2.54mm)
Read Out Dual
Mounting Through Hole
Termination Solder
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Contact Type Full Bellows
Color Blue
Temperature Range - Operating -65°C ~ 125°C
Material - Insulation Polybutylene Terephthalate (PBT)
Base Product Number EBC06
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number EBC06DRXN-ND,S9666,EBC06DRXN-NDL,Q8138309
Standard Package 1
Win Source Part Number 1333999-EBC06DRXN
Ultra Librarian 3D Model Ultra Librarian EBC06DRXN CAD Model

Description

This is a 12-position card edge connector designed for through-hole mounting.

  • Positions: 12
  • Mounting: Through-Hole
  • Pitch: 0.100 inches
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold
  • Insulation Material: Polybutylene Terephthalate (PBT)
  • Temperature Range: -65°C to 125°C
  • Contact Type: Full Bellows
  • Read Out: Dual
  • Card Type: Non-Specified Dual-Edge
  • Card Thickness: 0.062 inches
  • RoHS3 Compliant: Yes
  • Standard Package: 1
  • Contact Finish Thickness: 10.0µin (0.25µm)
