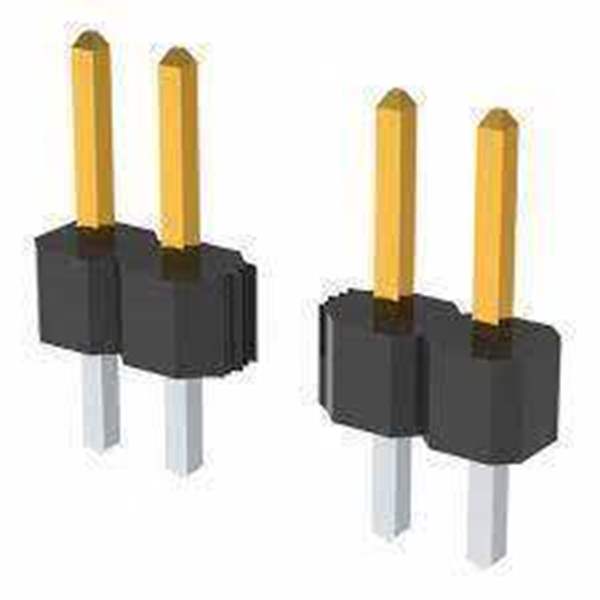

PBC36SAAN Sullins Connector Solutions
Same model may have multiple batches, images only for reference.

PBC36SAAN

Part No PBC36SAAN
Manufacturer Sullins Connector Solutions
Catalog Rectangular Connectors
Description CONN HEADER VERT 36POS 2.54MM
Datasheet
PBC36SAAN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1203386-PBC36SAAN
Manufacturer Sullins Connector Solutions
Category Connectors, Interconnects -Rectangular Connectors- Headers, Male Pins
Package Bulk
Product Status Active
Connector Type Header, Breakaway
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Style Board to Board or Cable
Insulation Material Polybutylene Terephthalate (PBT)
Ultra Librarian 3D Model Ultra Librarian PBC36SAAN CAD Model

Description

SPECIFICATIONS • 3 Amps current rating • UL Flammability Rating: 94V-0 • Insulator: PBT, PA9T, PPS, PEEK • Contact Material: Phosphor Bronze • See jumpers section for options available<br /> • Consult Factory for PCB Layout
