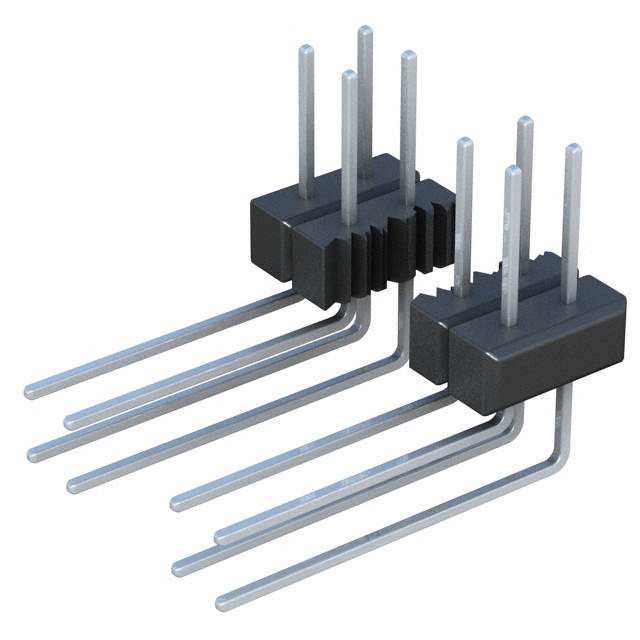

PTC24DBDN Real Image
Same model may have multiple batches, images only for reference.

PTC24DBDN

Part No PTC24DBDN
Manufacturer Sullins Connector Solutions
Catalog Rectangular Connectors
Description CONN HEADER R/A 48POS 2.54MM  /  Connector Header Through Hole, Right Angle 48 position 0.100" (2.54mm)
Datasheet
PTC24DBDN Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Sullins Connector Solutions
Package Bulk
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 48
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.230" (5.84mm)
Contact Length - Post 0.420" (10.67mm)
Insulation Height 0.240" (6.10mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100.0µin (2.54µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic, Polyester
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Contact Finish Thickness - Post 100.0µin (2.54µm)
Base Product Number PTC24
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names S2142-24
Standard Package 1
Win Source Part Number 1117796-PTC24DBDN
Ultra Librarian 3D Model Ultra Librarian PTC24DBDN CAD Model

Description

The Sullins Connector Solutions PTC24DBDN is a male pin header connector that has 48 positions and is loaded with all positions.

  • Positions: 48
  • Pitch-Mating: 0.100 inches
  • Connection Type: Board-to-board or cable
  • Contact Finish: Tin
  • Insulation Material: Thermoplastic and polyester
  • Current Rating: 3A
  • RoHS Compliance: Non-compliant
  • Status: Obsolete
  • Popularity: Low
