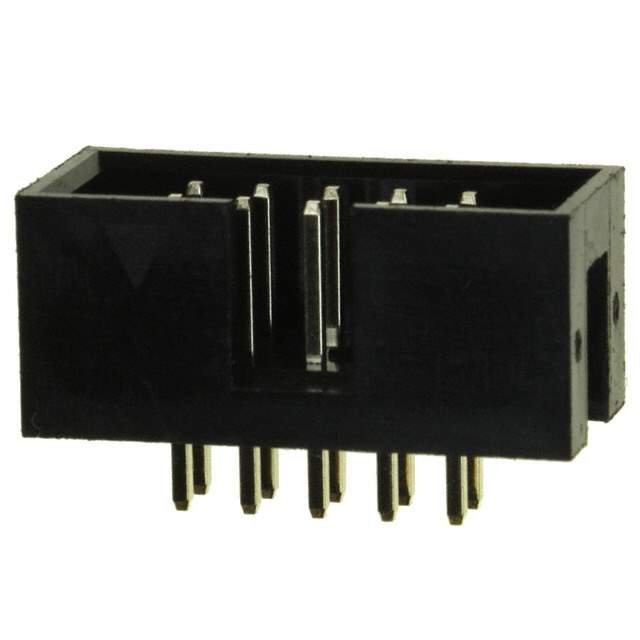

Same model may have multiple batches, images only for reference.

SBH11-PBPC-D05-ST-BK

Name: SBH11-PBPC-D05-ST-BK
Brand: Sullins Connector Solutions
SKU: 811341
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SBH11-PBPC-D05-ST-BK
Manufacturer	Sullins Connector Solutions
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 10POS 2.54MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Sullins Connector Solutions
Packaging	Tray
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Style	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Post	0.118" (3.00mm)
Insulation Height	0.358" (9.10mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish - Post	Gold
Contact Material	Brass
Insulation Material	Polybutylene Terephthalate (PBT)
Features	Keying Slot
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Mated Stacking Heights	9.65mm, 11.2mm, 13.35mm, 18.35mm
Contact Finish Thickness - Post	Flash
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Limited
Win Source Part Number	811344-SBH11-PBPC-D05-ST-BK
Ultra Librarian 3D Model	Ultra Librarian SBH11-PBPC-D05-ST-BK CAD Model

Alternative Products

Description

The SBH11-PBPC-D05-ST-BK from Sullins Connector Solutions is a through-hole mounted header connector with ten positions.

Positions: 10
Keying Slot: Yes
Design: Shrouded, four-wall
Applications: Board-to-board or cable connections
Contact Material: Brass
Contact Finish: Gold (Flash)
Insulation Material: Polybutylene Terephthalate (PBT)
Insulation Color: Black
Pitch-Mating: 0.100" (2.54mm)
Temperature Range: -40°C to 105°C
Popularity: Medium
Supply and Demand Status: Limited
