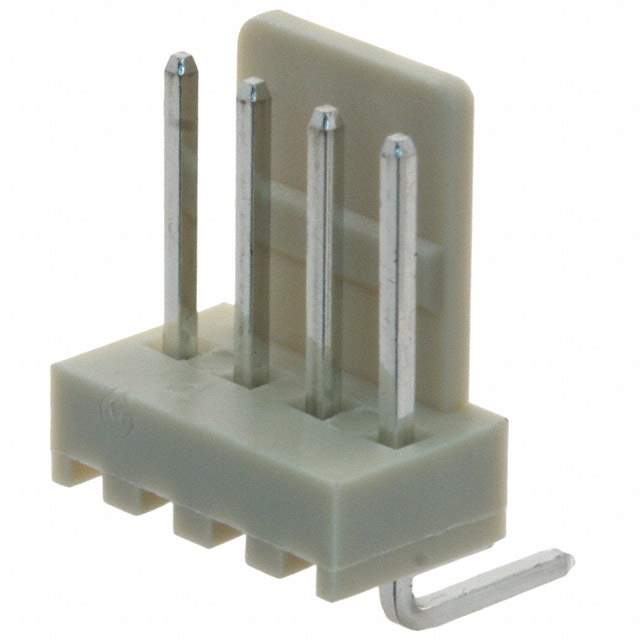

SWR25X-NRTC-S04-RB-BA

Part No SWR25X-NRTC-S04-RB-BA
Manufacturer Sullins Connector Solutions
Catalog Rectangular Connectors
Description CONN HEADER R/A 4POS 2.54MM / Connector Header Through Hole, Right Angle 4 position 0.100" (2.54mm)
Datasheet
SWR25X-NRTC-S04-RB-BA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Sullins Connector Solutions
Series SWR25X
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.303" (7.70mm)
Contact Length - Post 0.134" (3.40mm)
Insulation Height 0.228" (5.80mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66) , Nylon 6/6
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Beige
Current Rating (Amps) 5A per Contact
Voltage Rating 250V
Base Product Number SWR25X
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1337331-SWR25X-NRTC-S04-RB-BA
Ultra Librarian 3D Model Ultra Librarian SWR25X-NRTC-S04-RB-BA CAD Model

Description

The Sullins Connector Solutions SWR25X-NRTC-S04-RB-BA is a male pin header connector with four positions and a pitch-mating of 0.100" (2.54mm).

  • Connector Type: Header
  • Contact Type: Male Pin
  • Pitch - Mating: 0.100" (2.54mm)
  • Number of Positions: 4
  • Number of Rows: 1
  • Mounting Type: Through Hole, Right Angle
  • Termination: Solder
  • Fastening Type: Friction Lock
  • Contact Material: Brass
  • Contact Finish - Mating: Tin
  • Contact Finish - Post: Tin
  • Housing Material: Polyamide (PA66), Nylon 6/6
  • Voltage Rating: 250V
  • Current Rating (Per Contact): 5A
  • Operating Temperature: -25°C ~ 85°C
  • Material Flammability Rating: UL94 V-0
  • Shrouding: Shrouded - 1 Wall
  • Packaging: Bulk
