Same model may have multiple batches, images only for reference.

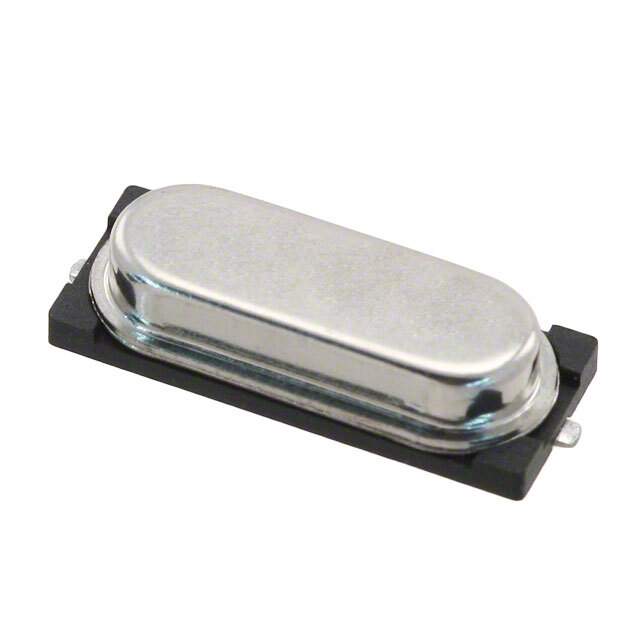

ABLS7M2-13.500MHZ-D-2Y-T Real Image
Same model may have multiple batches, images only for reference.

ABLS7M2-13.500MHZ-D-2Y-T

Part No ABLS7M2-13.500MHZ-D-2Y-T
Manufacturer Abracon LLC
Catalog Crystals
Description Crystal 13.5MHz ±20ppm (Tol) ±30ppm (Stability) 18pF FUND 60Ohm 2-Pin HC-49/US SMD T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Termination SMD/SMT
ESR (Equivalent Series Resistance) 60 Ω
Frequency 13.5 MHz
Frequency Stability 30 ppm
Frequency Tolerance 0.002 %
Height 2 mm
Lead Free Yes
Length 7 mm
Load Capacitance 18 pF
Maximum Operating Temperature 85 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Packaging Tape & Reel (TR)
REACH SVHC Yes
RoHS Compliant
Schedule B 8541600025, 8541600080, 8541600080
Tolerance 0.002 %
Width 4.0894 mm
Win Source Part Number 1034710-ABLS7M2-13.500MHZ-D-2Y-T
Categories Crystals
Manufacturer Abracon LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian ABLS7M2-13.500MHZ-D-2Y-T CAD Model

Description

The Abracon LLC ABLS7M2-13.500MHZ-D-2Y-T is a 13.5 MHz crystal with a frequency tolerance of 0.002%.

  • Frequency: 13.5 MHz
  • Frequency Tolerance: 0.002%
  • Load Capacitance: 18 pF
  • ESR: 60 Ω
  • Frequency Stability: 30 ppm
  • Length: 7 mm
  • Width: 4.0894 mm
  • Height: 2 mm
  • Applications: various electronic applications
  • Packaging: tape and reel
