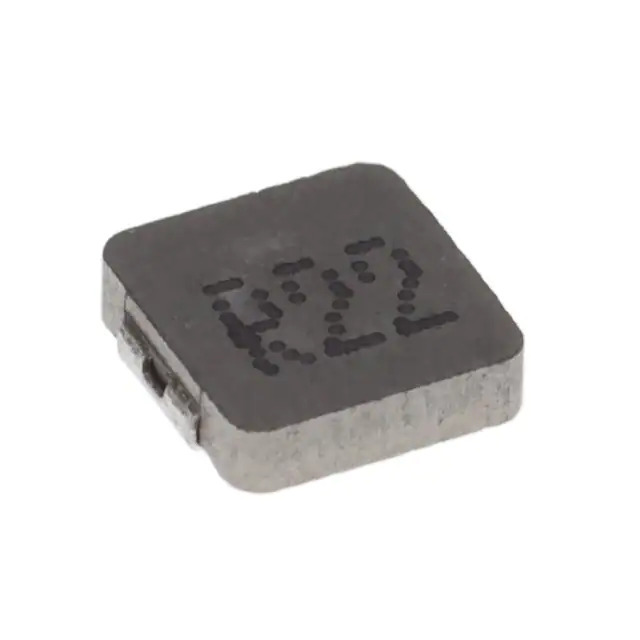

0412CDMCCDS-R22MC Sumida America Components Inc.
Same model may have multiple batches, images only for reference.

0412CDMCCDS-R22MC

Part No 0412CDMCCDS-R22MC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 220NH 9A 11 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Sumida America Components Inc.
Series 0412CDMCC/DS
Package Tape & Reel (TR)
Product Status Active
Type Molded
Material - Core Metal
Inductance 220 nH
Tolerance ±20%
Current Rating (Amps) 9 A
Current - Saturation (Isat) 12A
Shielding Shielded
DC Resistance (DCR) 11mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Features -
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.173" L x 0.165" W (4.40mm x 4.20mm)
Height - Seated (Max) 0.047" (1.20mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1370499-0412CDMCCDS-R22MC
Ultra Librarian 3D Model Ultra Librarian 0412CDMCCDS-R22MC CAD Model

Description

The 0412CDMCCDS-R22MC is a molded inductor from Sumida America Components Inc.

  • Temperature Range: -55°C to 125°C
  • Tolerance: ±20%
  • Inductance: 220nH
  • Current Rating: 9A
  • Saturation Current: 12A
  • Shielding: Shielded
  • DC Resistance: 11mOhm
  • Size: 0.173" L x 0.165" W (4.40mm x 4.20mm)
  • Height Seated: 0.047" (1.20mm)
  • Mounting Type: Surface Mountable
  • Package: Nonstandard
  • Product Status: Active
  • Series: 0412CDMCC/DS
  • Packaging: Tape and Reel
