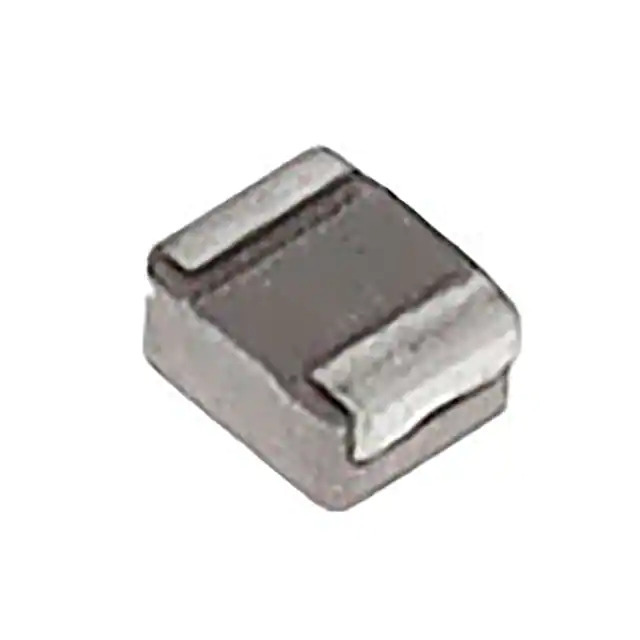

Same model may have multiple batches, images only for reference.

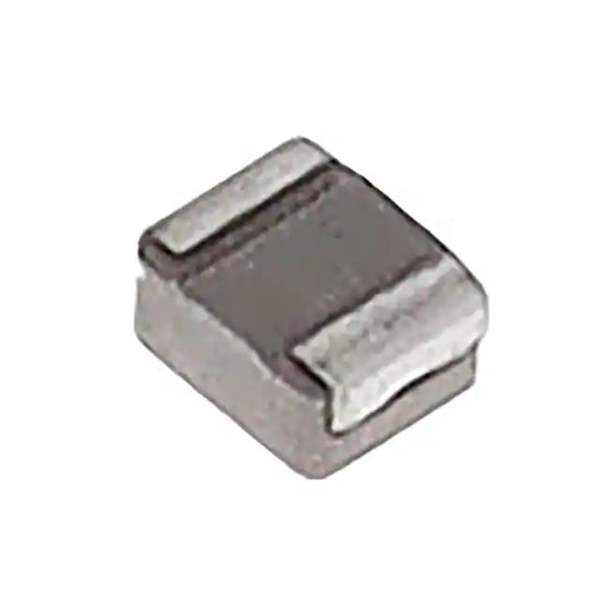

201610CDMCDDS-R68MC

Name: 201610CDMCDDS-R68MC
Brand: Sumida America Components Inc.
SKU: 1370341
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	201610CDMCDDS-R68MC
Manufacturer	Sumida America Components Inc.
Catalog	Fixed Inductors
Description	FIXED IND 680NH 4.2A 43 MOHM SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Sumida America Components Inc.
Series	201610CDMCD/DS
Package	Tape & Reel
Product Status	Active
Type	Molded
Material - Core	Metal Composite
Inductance	680 nH
Tolerance	±20%
Current Rating (Amps)	4.2 A
Current - Saturation (Isat)	3.6A
Shielding	Shielded
DC Resistance (DCR)	43mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	1 MHz
Features	-
Mounting Type	Surface Mount
Package / Case	0806 (2016 Metric)
Supplier Device Package	0806
Size / Dimension	0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max)	0.039" (1.00mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1370341-201610CDMCDDS-R68MC
Ultra Librarian 3D Model	Ultra Librarian 201610CDMCDDS-R68MC CAD Model

Alternative Products

Description

The 201610CDMCDDS-R68MC is a fixed inductor from Sumida America Components Inc.

Series: 201610CDMCD/DS
Package: Molded
Size: 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height: 0.039" (1.00mm)
Mounting Type: Surface Mount
Tolerance: ±20%
Inductance: 680nH
Current Rating: 4.2A
Shielding: Shielded
DC Resistance: 43mOhm Max
Operating Temperature: -55°C to 125°C
