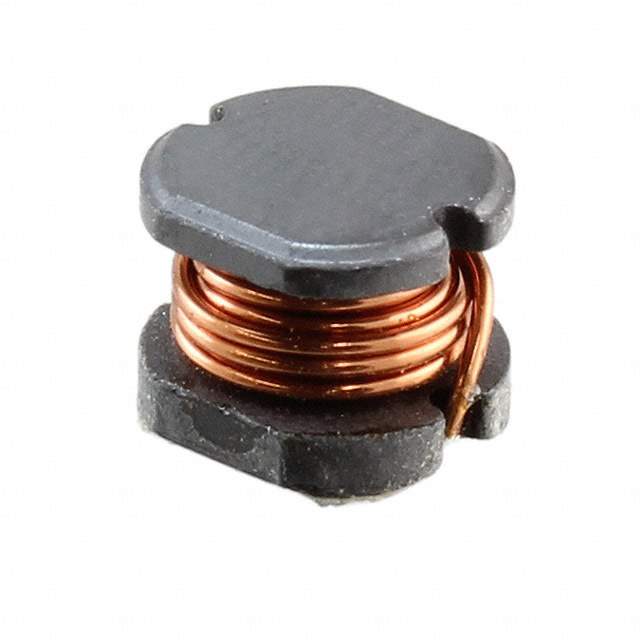

CD54NP-270MC Real Image
Same model may have multiple batches, images only for reference.

CD54NP-270MC

Part No CD54NP-270MC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 27UH 970MA 200 MOHM
Datasheet
CD54NP-270MC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Status Active
Material - Core Ferrite
Inductance 27μH
Tolerance ±20%
Current Rating 970mA
DC Resistance (DCR) 200 mOhm Max
Temperature Range - Operating -40°C to 100°C
Frequency - Test 2.52MHz
Mounting SMD (SMT)
Height - Seated (Max) 0.191" (4.85mm)
Win Source Part Number 050139-CD54NP-270MC
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CD54NP-270MC CAD Model

Description

Description

The CD54NP-270MC is a robust 27uH power inductor designed for use in circuits requiring efficient energy storage and minimal electromagnetic interference. Its construction ensures stability and durability in various electrical environments.

Features and Benefits

  • 27uH inductance
  • High power efficiency
  • Reduced EMI
  • Sturdy design for durability

Applications

  • Choke coils
  • Energy storage solutions
  • Signal coupling devices
  • Power supply units

Additional Details

Designed for high stability, the CD54NP-270MC ensures consistent performance in high-frequency applications.
