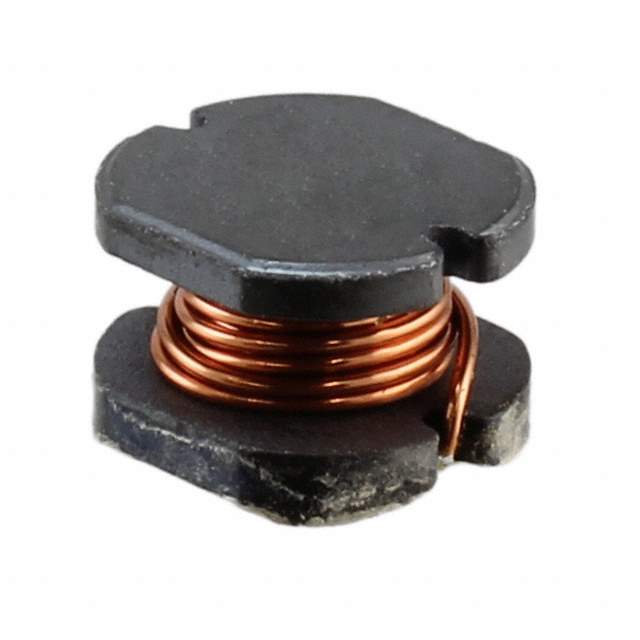

Same model may have multiple batches, images only for reference.

CD75NP-150KC

Name: CD75NP-150KC
Brand: Sumida America Components Inc.
SKU: 1000133
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	CD75NP-150KC
Manufacturer	Sumida America Components Inc.
Catalog	Fixed Inductors
Description	FIXED IND 15UH 1.8A 90 MOHM SMD / 15 µH Unshielded Inductor 1.8 A 90mOhm Max Nonstandard
Datasheet	CD75NP-150KC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Sumida America Components Inc.
Series	CD75
Package	Tape & Reel
Material - Core	Ferrite
Inductance	15 µH
Tolerance	±10%
Current Rating (Amps)	1.8 A
Shielding	Unshielded
DC Resistance (DCR)	90mOhm Max
Temperature Range - Operating	-40°C ~ 100°C
Inductance Frequency - Test	2.52 MHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max)	0.217" (5.50mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	308-1871-6,308-1871-2,308-1871-1
Standard Package	500
Win Source Part Number	1000133-CD75NP-150KC
Ultra Librarian 3D Model	Ultra Librarian CD75NP-150KC CAD Model

Alternative Products

Description

The Sumida America Components Inc. CD75NP-150KC is a fixed inductor that falls under the category of electronic components.

Package: non-standard package
Packaging: tape and reel
Shielding: unshielded
Inductance: 15 µH
Tolerance: ±10%
Core Material: ferrite
Mounting: SMD (SMT) mountable
DC Resistance (DCR): 90mOhm Max
Temperature Range: -40°C ~ 100°C
Information: For more information about this product, please refer to the manufacturer's specifications.
