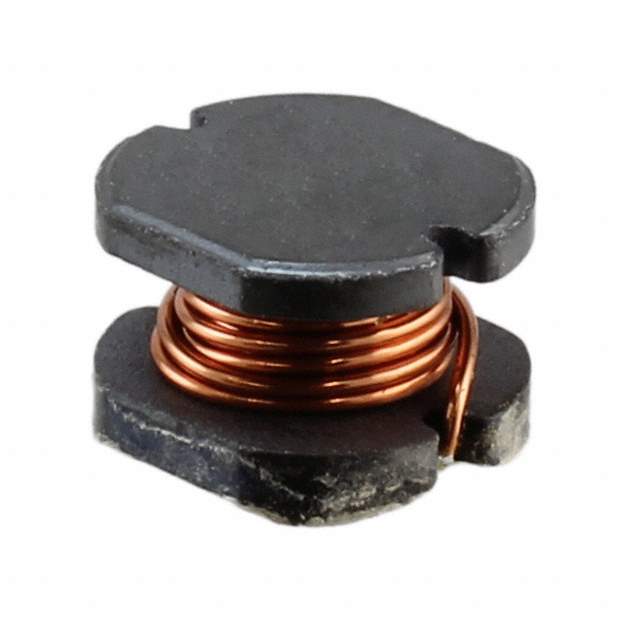

Same model may have multiple batches, images only for reference.

CD75NP-221KC

Name: CD75NP-221KC
Brand: Sumida America Components Inc.
SKU: 1008525
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	CD75NP-221KC
Manufacturer	Sumida America Components Inc.
Catalog	Fixed Inductors
Description	FIXED IND 220UH 490MA 960MOHM SM / 220 µH Unshielded Inductor 490 mA 960mOhm Max Nonstandard
Datasheet	CD75NP-221KC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Sumida America Components Inc.
Series	CD75
Package	Tape & Reel
Material - Core	Ferrite
Inductance	220 µH
Tolerance	±10%
Current Rating (Amps)	490 mA
Shielding	Unshielded
DC Resistance (DCR)	960mOhm Max
Temperature Range - Operating	-40°C ~ 100°C
Inductance Frequency - Test	1 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max)	0.217" (5.50mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	308-1872-6,308-1872-1,308-1872-2
Standard Package	500
Win Source Part Number	1008525-CD75NP-221KC
Ultra Librarian 3D Model	Ultra Librarian CD75NP-221KC CAD Model

Alternative Products

Description

The Sumida America Components Inc. CD75NP-221KC is a fixed inductor with an inductance of 220 µH and a current rating of 490mA.

Package: non-standard package
Shielding: unshielded
Tolerance: ±10%
DCR: 960mOhm
Packaging: tape and reel, 500 pieces per package
Temperature Range: -40°C to 100°C
Applications: power supply, automotive, and industrial.
REACH: unaffected
ECCN: EAR99
