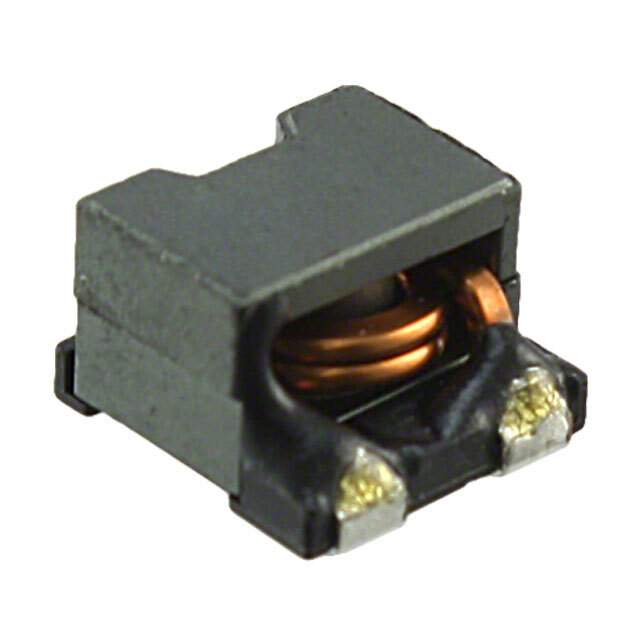

CDEP85NP-1R1MC-125 Real Image1 CDEP85NP-1R1MC-125 Real Image2
Same model may have multiple batches, images only for reference.
CDEP85NP-1R1MC-125 Real Image1 CDEP85NP-1R1MC-125 Real Image2
CDEP85NP-1R1MC-125 Real Image1 CDEP85NP-1R1MC-125 Real Image2
Same model may have multiple batches, images only for reference.

CDEP85NP-1R1MC-125

Part No CDEP85NP-1R1MC-125
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 1.1UH 17A 3.4 MOHM SMD / 1.1 µH Shielded Drum Core, Wirewound Inductor 17 A 3.4mOhm Max Nonstandard
Datasheet
CDEP85NP-1R1MC-125 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Sumida America Components Inc.
Series CDEP85
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 1.1 µH
Tolerance ±20%
Current Rating (Amps) 17 A
Current - Saturation (Isat) 7.8A
Shielding Shielded
DC Resistance (DCR) 3.4mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max) 0.217" (5.50mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Standard Package 1,000 pcs
Win Source Part Number 1381774-CDEP85NP-1R1MC-125
Ultra Librarian 3D Model Ultra Librarian CDEP85NP-1R1MC-125 CAD Model

Description

The 1381774-CDEP85NP-1R1MC-125 is a fixed inductor component from Sumida America Components Inc.

  • Core Material: Drum Core, Wirewound
  • Shielding: Shielded
  • Size / Dimension: 0.315" L x 0.315" W (8.00mm x 8.00mm)
  • Inductance: 1.1µH
  • Tolerance: ±20%
  • Height - Seated (Max): 0.217" (5.50mm)
  • DC Resistance (DCR): 3.4mOhm
  • Mounting Type: Surface Mount
  • Moisture Sensitivity Level (MSL): 1 (Unlimited)
  • Current Rating: 17A
