Same model may have multiple batches, images only for reference.

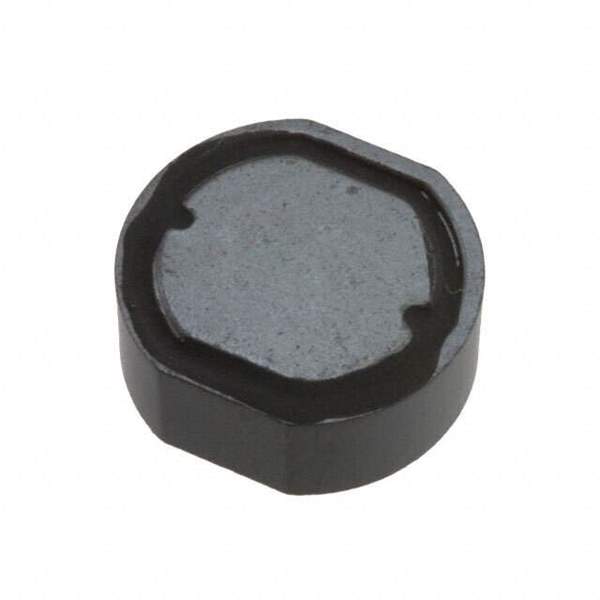

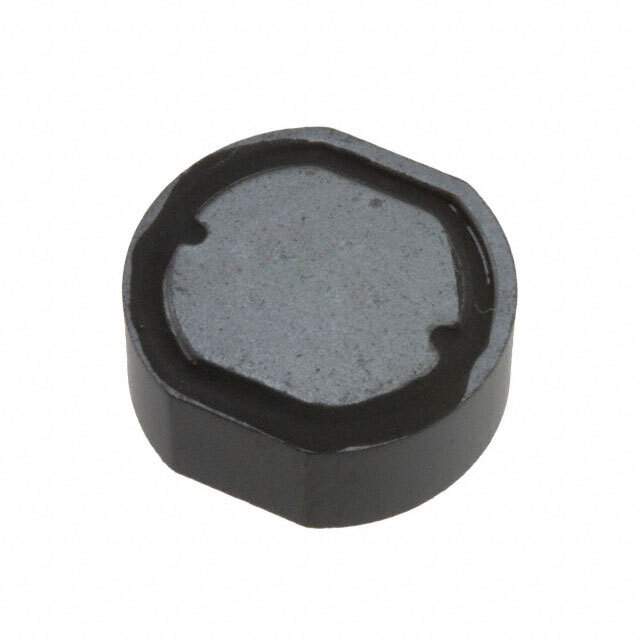

CDR125NP-101MC Real Image
Same model may have multiple batches, images only for reference.

CDR125NP-101MC

Part No CDR125NP-101MC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 100UH 1.05A 250MOHM SM / 100 µH Shielded Inductor 1.05 A 250mOhm Max Nonstandard
Datasheet
CDR125NP-101MC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Sumida America Components Inc.
Series CDR125
Package Tape & Reel
Product Status Obsolete
Inductance 100 µH
Tolerance -15%, +20%
Current Rating (Amps) 1.05 A
Shielding Shielded
DC Resistance (DCR) 250mOhm Max
Frequency - Self Resonant 6.92MHz
Temperature Range - Operating -40°C ~ 100°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.496" L x 0.457" W (12.60mm x 11.60mm)
Height - Seated (Max) 0.232" (5.90mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names 308-1427-6,CDR125NP-101MC-ND,Q2644804,CDR125NP101MC,308-1427-1,308-1427-2
Standard Package 500
Win Source Part Number 1051699-CDR125NP-101MC
Ultra Librarian 3D Model Ultra Librarian CDR125NP-101MC CAD Model

Description

The Sumida America Components Inc. CDR125NP-101MC is a shielded inductor that has an inductance of 100 µH.

  • Inductance: 100 µH
  • Maximum Resistance: 250mOhm
  • Current: Up to 1.05 A
  • Package: Non-standard package
  • Packaging: Tape & reel
  • Mounting: Surface mountable
  • Series: CDR125
  • Operating Temperature Range: -40°C to 100°C
  • Applications: Power supplies, DC-DC converters
  • Quantity per Package: 500
  • ECCN: EAR99
  • HTSUS: 8504.50.4000
