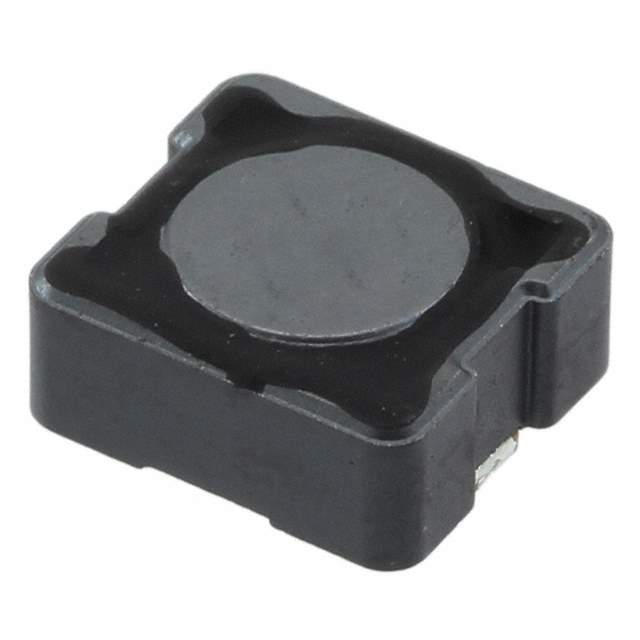

Same model may have multiple batches, images only for reference.

CDRH104NP-101MC

Name: CDRH104NP-101MC
Brand: Sumida America Components Inc.
SKU: 578115
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	CDRH104NP-101MC
Manufacturer	Sumida America Components Inc.
Catalog	Fixed Inductors
Description	CDRH104
Datasheet	CDRH104NP-101MC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Sumida America Components Inc.
Series	CDRH104
Packaging	Reel - TR
Inductance	100μH
Tolerance	±20%
Current Rating	760mA
Shielding	Shielded
DC Resistance (DCR)	410 mOhm Max
Operating Temperature Range	-40°C ~ 100°C
Test Frequency	1kHz
Mounting	SMD
Package	Nonstandard
Size	0.386" L x 0.350" W (9.80mm x 8.90mm)
Height - Seated (Maximum)	0.197" (5.00mm)
Win Source Part Number	1160803-CDRH104NP-101MC
Manufacturer Homepage	www.sumida.com
Popularity	Medium
Supply and Demand Status	Limited
Family Name	CDRH104
Introduction Date	August 27, 2009
ECCN	EAR99
Estimated EOL Date	2024
Ultra Librarian 3D Model	Ultra Librarian CDRH104NP-101MC CAD Model

Alternative Products

Description

The CDRH104NP-101MC is a shielded surface-mount inductor manufactured by Sumida America Components Inc.

Win Source Part Number: 1160803-CDRH104NP-101MC
Series: CDRH104
Supply and Demand Status: Limited
Operating Temperature Range: -40°C to 100°C
Current Rating: 760mA
Inductance: 100μH
Tolerance: ±20%
DC Resistance (DCR): 410 mOhm Max
Package Size: 0.386" L x 0.350" W (9.80mm x 8.90mm)
Height Seated (Maximum): 0.197" (5.00mm)
Alternative Parts: IDCP3916ER101M, SD1006-101K-7, and H.DI-0940-101
Introduction Date: August 27, 2009
Estimated EOL Date: 2024
ECCN: EAR99
