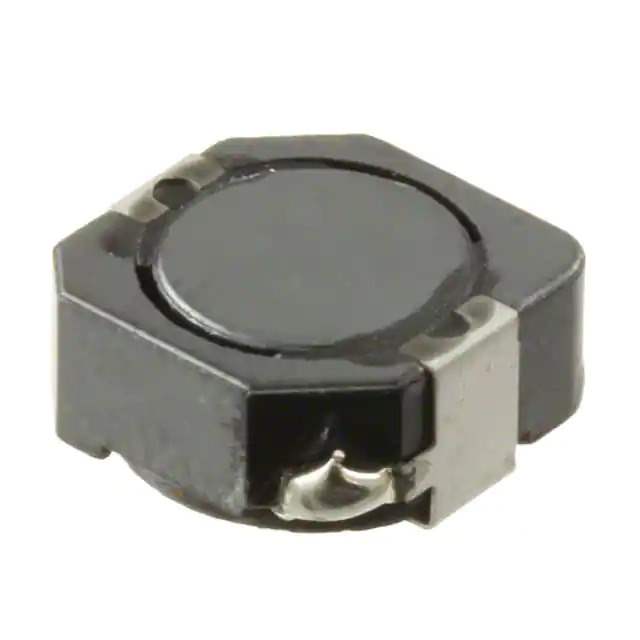

CDRH105RNP-3R3NC Real Image
Same model may have multiple batches, images only for reference.

CDRH105RNP-3R3NC

Part No CDRH105RNP-3R3NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 3.3UH 6.5A 10.4MOHM SM
Datasheet
CDRH105RNP-3R3NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Sumida America Components Inc.
Series CDRH105R
Package Tape & Reel
Product Status Active
Material - Core Ferrite
Inductance 3.3 µH
Tolerance ±30%
Current Rating (Amps) 6.5 A
Current - Saturation (Isat) 7.8A
Shielding Shielded
DC Resistance (DCR) 10.4mOhm Max
Temperature Range - Operating -40°C ~ 100°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.402" L x 0.394" W (10.20mm x 10.00mm)
Height - Seated (Max) 0.201" (5.10mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 578129-CDRH105RNP-3R3NC
Ultra Librarian 3D Model Ultra Librarian CDRH105RNP-3R3NC CAD Model

Description

The 578129-CDRH105RNP-3R3NC is a shielded fixed inductor from Sumida America Components Inc.

  • Series: CDRH105R
  • Inductance: 3.3µH
  • Size: 0.402" L x 0.394" W (10.20mm x 10.00mm)
  • Height (Seated): 0.201" (5.10mm)
  • Package: Tape & Reel
  • Standard Package: 500 pieces
  • Tolerance: ±30%
  • DC Resistance (DCR): 10.4mOhm max
  • Operating Temperature: -40°C to 100°C
