Same model may have multiple batches, images only for reference.

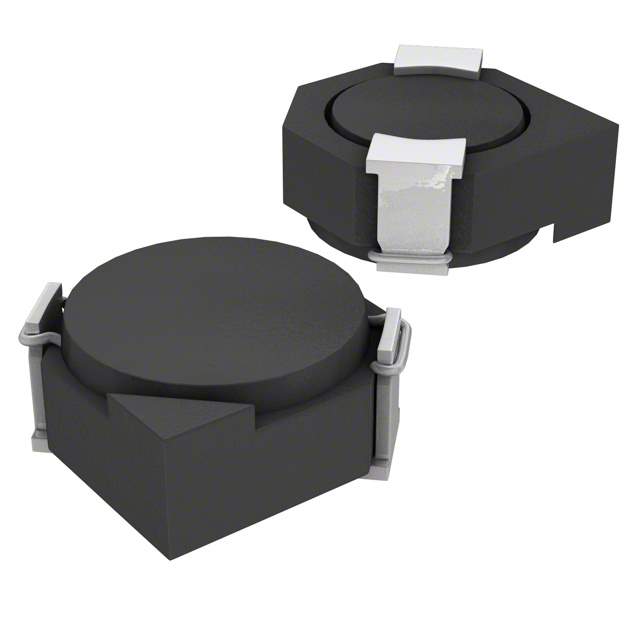

CDRH2D14NP-1R2NC Real Image
Same model may have multiple batches, images only for reference.

CDRH2D14NP-1R2NC

Part No CDRH2D14NP-1R2NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 1.2UH 2.75A 49 MOHM
Datasheet
CDRH2D14NP-1R2NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Status Active
Material - Core Ferrite
Inductance 1.2μH
Tolerance ±30%
Current Rating 2.75A
Current - Saturation 1.95A
DC Resistance (DCR) 49 mOhm Max
Temperature Range - Operating -40°C to 100°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.061" (1.55mm)
Win Source Part Number 1028900-CDRH2D14NP-1R2NC
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CDRH2D14NP-1R2NC CAD Model

Description

The Sumida America Components Inc. CDRH2D14NP-1R2NC inductor is a ferrite core component that provides an inductance of 1.2μH and a current rating of 2.75A.

  • Inductance: 1.2μH
  • Current Rating: 2.75A
  • Core Material: Ferrite
  • DC Resistance (DCR): 49 mOhm max
  • Tolerance: ±30%
  • Mounting Technology: SMD (SMT)
  • Height: 0.061" (1.55mm)
  • Operating Temperature Range: -40°C to 100°C
  • Packaging: Reel - TR
  • Popularity Status: Medium
