Same model may have multiple batches, images only for reference.

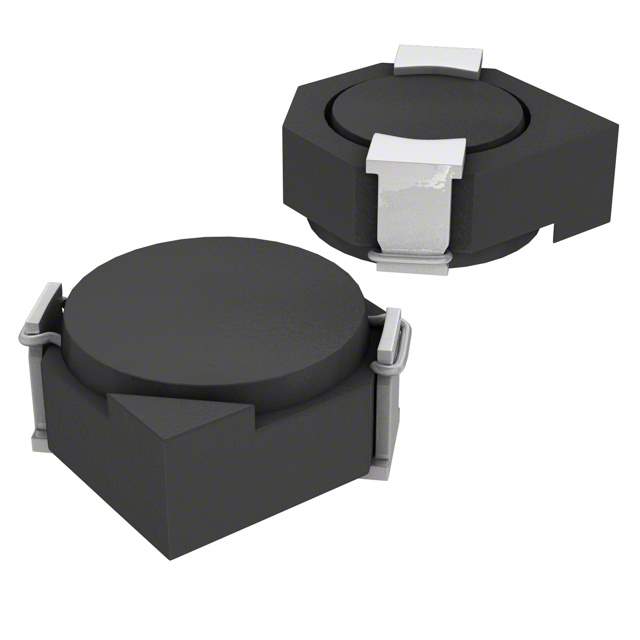

CDRH2D14NP-6R8NC Real Image
Same model may have multiple batches, images only for reference.

CDRH2D14NP-6R8NC

Part No CDRH2D14NP-6R8NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description Inductor Power Shielded Drum Core 6.8uH 30% 100KHz Ferrite 0.92A 0.213Ohm DCR 1212 T/R / FIXED IND 6.8UH 920MA 213 MOHM
Datasheet
CDRH2D14NP-6R8NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Status Active
Material - Core Ferrite
Inductance 6.8μH
Tolerance ±30%
Current Rating 920mA
Current - Saturation 850mA
DC Resistance (DCR) 213 mOhm Max
Temperature Range - Operating -40°C to 100°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.061" (1.55mm)
Win Source Part Number 039882-CDRH2D14NP-6R8NC
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name CDRH2D14
Introduction Date August 29, 2006
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian CDRH2D14NP-6R8NC CAD Model

Description

Product Description

The CDRH2D14NP-6R8NC power inductor is engineered for high-efficiency magnetic conversion in compact electronics circuits. It offers reliable performance for diverse electronic applications.

  • Applications:
    • DC-DC converters
    • Mobile devices
    • Industrial instruments
    • Automotive electronics
  • Features and Benefits:
    • Efficient power conversion due to low loss design
    • Compact size enhances use in smaller devices
    • High reliability ensuring extended operational life
    • Strong current endurance for demanding applications
  • Additional Details: Known for its performance consistency, the CDRH2D14NP-6R8NC is suitable for applications requiring precise energy regulation and efficiency.
