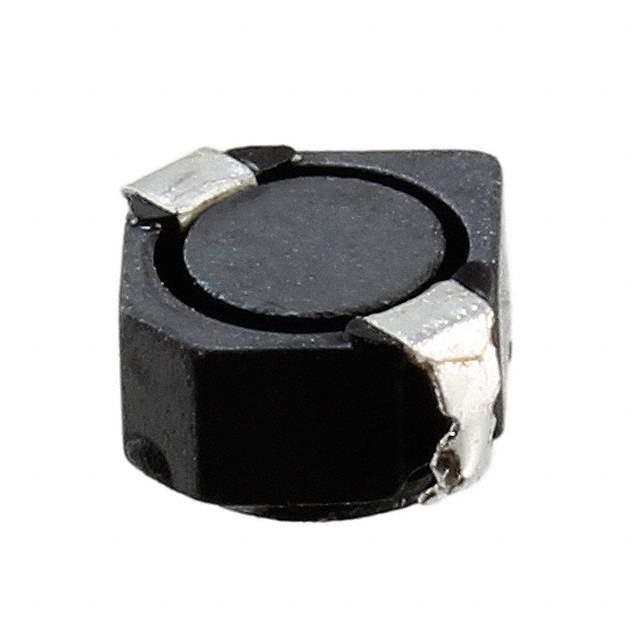

CDRH3D23NP-2R2PC Real Image
Same model may have multiple batches, images only for reference.

CDRH3D23NP-2R2PC

Part No CDRH3D23NP-2R2PC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description Ferrite drum core construction.
Datasheet
CDRH3D23NP-2R2PC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Series CDRH3D23
Packaging Reel - TR
Material - Core Ferrite
Inductance 2.2μH
Tolerance ±25%
Current Rating 1.8A
Current - Saturation 1.8A
Shielding Shielded
DC Resistance (DCR) 38.3 mOhm Max
Operating Temperature Range -40°C ~ 105°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Maximum) 0.098" (2.50mm)
Win Source Part Number 1160845-CDRH3D23NP-2R2PC
Manufacturer Homepage www.sumida.com
Popularity Medium
Supply and Demand Status Limited
Family Name CDRH3D23
Introduction Date November 21, 2006
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian CDRH3D23NP-2R2PC CAD Model

Description

The Sumida America Components Inc.

  • Manufacturer's Homepage: www.sumida.com
  • Win Source Part Number: 1160845-CDRH3D23NP-2R2PC
  • Shielding: Shielding feature
  • Current Rating: 1.8A
  • Operating Temperature Range: -40°C to 105°C
  • Tolerance: ±25%
