Same model may have multiple batches, images only for reference.

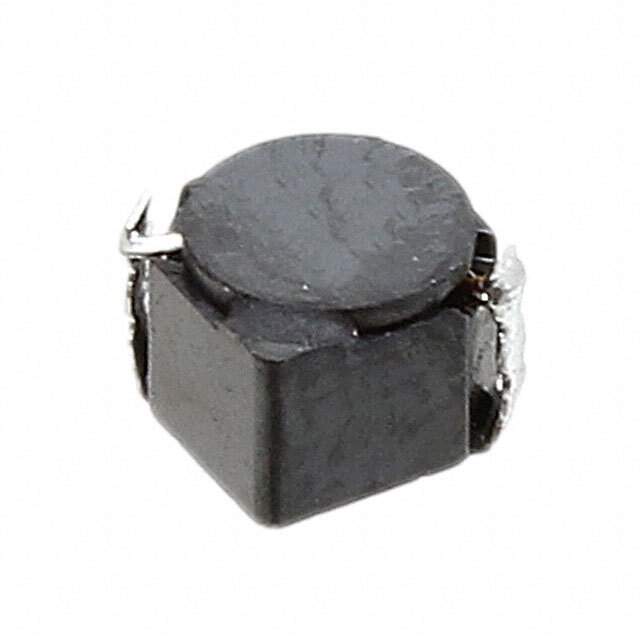

CDRH3D28NP-4R7NC Real Image
Same model may have multiple batches, images only for reference.

CDRH3D28NP-4R7NC

Part No CDRH3D28NP-4R7NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 4.7UH 1.62A 88.3 MOHM
Datasheet
CDRH3D28NP-4R7NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Status Active
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±30%
Current Rating 1.62A
Current - Saturation 1.65A
DC Resistance (DCR) 88.3 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.118" (3.00mm)
Win Source Part Number 050243-CDRH3D28NP-4R7NC
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CDRH3D28NP-4R7NC CAD Model

Description

Product Overview

The CDRH3D28NP-4R7NC is engineered to cater to high-current applications with an emphasis on efficiency and reliability, providing superior inductive capabilities within compact electronic infrastructures.

Features and Benefits

  • Stable inductance value with high intensity current.
  • Compact size enables versatile application usage.
  • Durable core composition for extended product life.
  • Compliant with international safety standards.

Applications

  • Wearable devices
  • Mobile charging systems
  • Smart home devices
  • Battery-powered tools
  • Automated lighting systems

Additional Details

The precision and engineering excellence of the CDRH3D28NP-4R7NC make it a preferred component for cutting-edge electronics applications demanding reliability and size efficiency.
