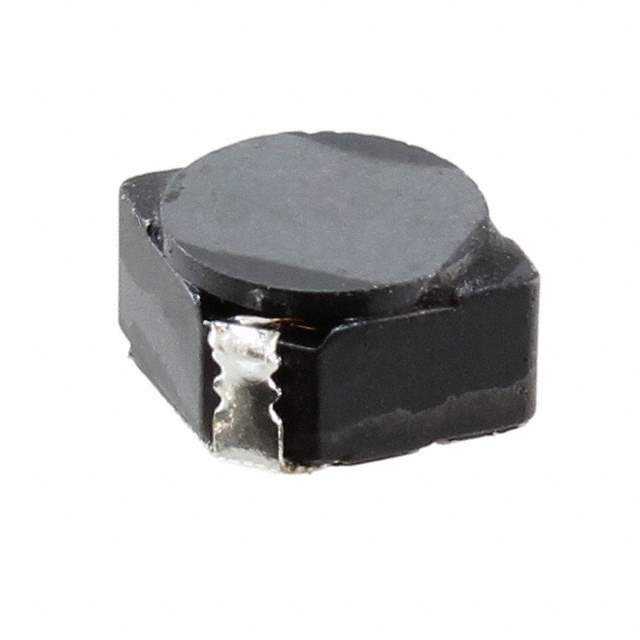

Same model may have multiple batches, images only for reference.

CDRH4D28NP-1R2NC

Name: CDRH4D28NP-1R2NC
Brand: Sumida America Components Inc.
SKU: 1381780
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	CDRH4D28NP-1R2NC
Manufacturer	Sumida America Components Inc.
Catalog	Fixed Inductors
Description	FIXED IND 1.2UH 2.56A 23.6 MOHM / 1.2 µH Shielded Inductor 2.56 A 23.6mOhm Max Nonstandard
Datasheet	CDRH4D28NP-1R2NC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Sumida America Components Inc.
Series	CDRH4D28
Package	Tape & Reel
Type	-
Material - Core	Ferrite
Inductance	1.2 µH
Tolerance	±30%
Current Rating (Amps)	2.56 A
Current - Saturation (Isat)	-
Shielding	Shielded
DC Resistance (DCR)	23.6mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Temperature Range - Operating	-40°C ~ 100°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.185" L x 0.185" W (4.70mm x 4.70mm)
Height - Seated (Max)	0.118" (3.00mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Standard Package	2,000 pcs
Win Source Part Number	1381780-CDRH4D28NP-1R2NC
Ultra Librarian 3D Model	Ultra Librarian CDRH4D28NP-1R2NC CAD Model

Alternative Products

Description

The CDRH4D28NP-1R2NC is a shielded fixed inductor manufactured by Sumida America Components Inc.

Series: CDRH4D28
Inductor Type: Fixed
Shielding: Shielded
Mounting Type: Surface Mount
Package / Case: Nonstandard
Size / Dimension: 0.185" L x 0.185" W (4.70mm x 4.70mm)
Height - Seated (Max): 0.118" (3.00mm)
Inductance: 1.2μH
Tolerance: ±30%
DC Resistance (DCR): 23.6mOhm
Current Rating: 2.56A
Operating Temperature: -40°C to 100°C
REACH: Unaffected
ECCN: EAR99
Moisture Sensitivity Level (MSL): 1 (Unlimited)
