Same model may have multiple batches, images only for reference.

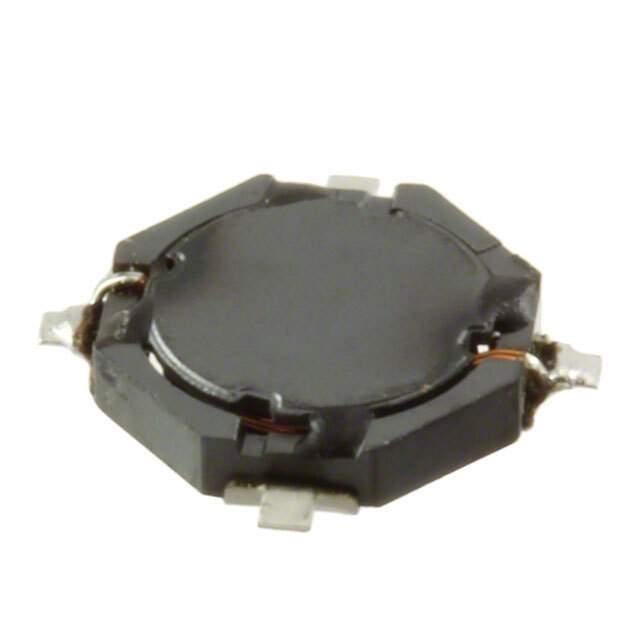

CDRH6D12NP-2R2NC Real Image
Same model may have multiple batches, images only for reference.

CDRH6D12NP-2R2NC

Part No CDRH6D12NP-2R2NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 2.2UH 2.3A 50 MOHM SMD
Datasheet
CDRH6D12NP-2R2NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Status Active
Material - Core Ferrite
Inductance 2.2μH
Tolerance ±30%
Current Rating 2.3A
Current - Saturation 2.5A
DC Resistance (DCR) 50 mOhm Max
Temperature Range - Operating -40°C to 100°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.059" (1.50mm)
Win Source Part Number 013088-CDRH6D12NP-2R2NC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CDRH6D12NP-2R2NC CAD Model

Description

CDRH6D12NP-2R2NC: Versatile Inductor for Consumer Electronics

The CDRH6D12NP-2R2NC offers excellent performance in a diverse range of consumer electronics. Its efficient design supports stable operation and enhances overall device efficiency.

  • Applications:
    • Smartphones and tablets
    • Notebook computers
    • Variable power supply systems
  • Features and Benefits:
    • Wide inductance range
    • High reliability and thermal stability
    • Compact size
  • Additional Details:
    • Material: Ferrite core
    • Inductance: 2.2 μH
    • Rated current: Optimized for moderate power applications
