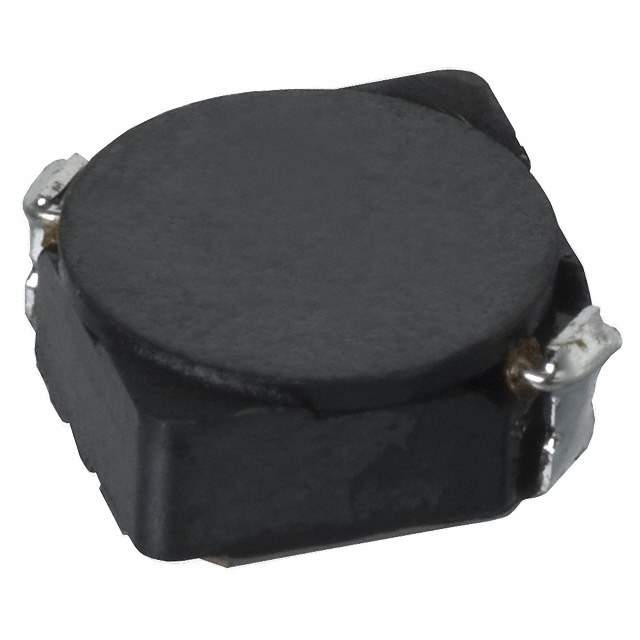

CDRH6D28-220NC Real Image
Same model may have multiple batches, images only for reference.

CDRH6D28-220NC

Part No CDRH6D28-220NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 22UH 1.2A 128 MOHM SMD
Datasheet
CDRH6D28-220NC Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Material - Core Ferrite
Inductance 22μH
Tolerance ±30%
Current Rating 1.2A
DC Resistance (DCR) 128 mOhm Max
Temperature Range - Operating -40°C to 100°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.118" (3.00mm)
Win Source Part Number 127064-CDRH6D28-220NC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CDRH6D28-220NC CAD Model

Description

CDRH6D28-220NC Description

The CDRH6D28-220NC inductors are designed to offer high inductance density while maintaining a low electromagnetic interference footprint, making it an ideal choice for high-frequency applications.

Features and Benefits

  • Electromagnetic Shielding: Minimizes interference with neighboring components.
  • High Inductance Density: Provides more inductance without increasing size.
  • Heat Resistant: Operates effectively under high thermal stress.

Applications and Projects

  • RF circuits
  • Switching power supplies
  • Server and networking devices
  • Industrial electronics

Additional Details

Its rugged design ensures reliability and long service life, making it a suitable choice for demanding industrial environments.
