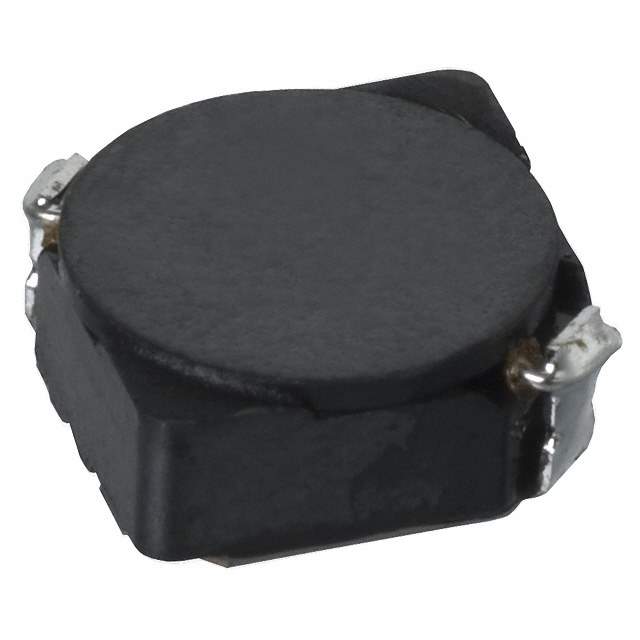

CDRH6D28-7R3NC Real Image
Same model may have multiple batches, images only for reference.

CDRH6D28-7R3NC

Part No CDRH6D28-7R3NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 7.3UH 2.1A 54 MOHM SMD / 7.3 µH Shielded Inductor 2.1 A 54mOhm Max Nonstandard
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Sumida America Components Inc.
Series CDRH6D28
Package Tape & Reel
Product Status Obsolete
Material - Core Ferrite
Inductance 7.3 µH
Tolerance ±30%
Current Rating (Amps) 2.1 A
Shielding Shielded
DC Resistance (DCR) 54mOhm Max
Temperature Range - Operating -40°C ~ 100°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.264" L x 0.264" W (6.70mm x 6.70mm)
Height - Seated (Max) 0.118" (3.00mm)
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 308-1222-1,Q2516515,CDRH6D287R3NC,308-1222-6,308-1222-2
Standard Package 1,500
Win Source Part Number 1039840-CDRH6D28-7R3NC
Ultra Librarian 3D Model Ultra Librarian CDRH6D28-7R3NC CAD Model

Description

The CDRH6D28-7R3NC is a shielded inductor with an inductance of 7.3 µH and a maximum seated height of 0.118" (3.00mm).

  • Inductance: 7.3 µH
  • Height - Seated (Max): 0.118" (3.00mm)
  • DC Resistance (DCR): 54mOhm Max
  • Tolerance: ±30%
  • Core Material: Ferrite
  • Package/Case: Nonstandard
  • Temperature Range: -40°C to 100°C
  • Current Rating: 2.1 A
  • Category: Inductors, coils, or chokes
  • Package: Tape and reel
  • Standard Package: 1,500
  • Shielded: Yes
