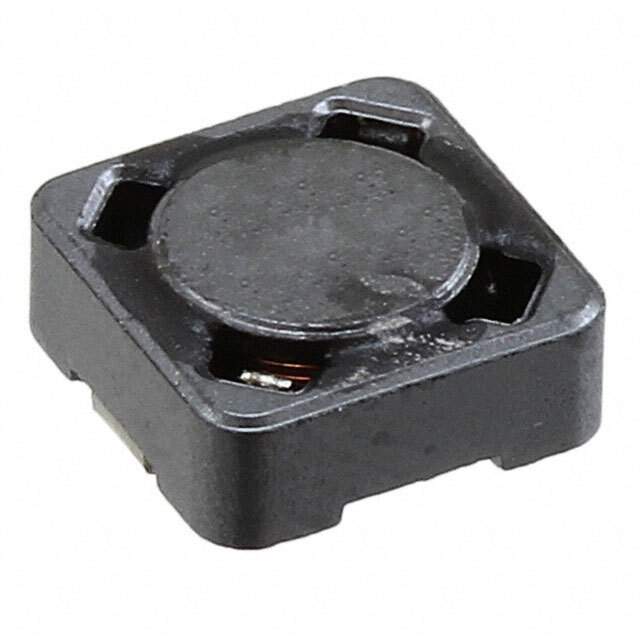

The CDRH73NP-180MC-B is a shielded power inductor manufactured by Sumida America Components Inc. This inductor is designed for applications requiring high inductance and current handling in a compact form factor. It's suitable for various power supply and filtering circuits.

Applications

• DC-DC converters
• Power supplies
• Buck and Boost converters
• Noise Filtering
• Voltage Regulators

Features

• Shielded construction for low EMI radiation
• High inductance value
• High rated current
• Low DC resistance
• Compact size for space-constrained applications

Benefits

• Minimized EMI allows for use in sensitive electronic devices
• Effective energy storage and filtering capabilities
• Handles high current loads without saturation
• Reduces power loss due to low DC resistance
• Enables miniaturization of electronic circuits

Specifications

Inductance: 18 μH

Tolerance: ±20%

DC Resistance (DCR): 0.14 Ohms (Max)

Saturation Current: 2.4 A

Rated Current: 2.2 A

Operating Temperature: -25°C to +85°C
