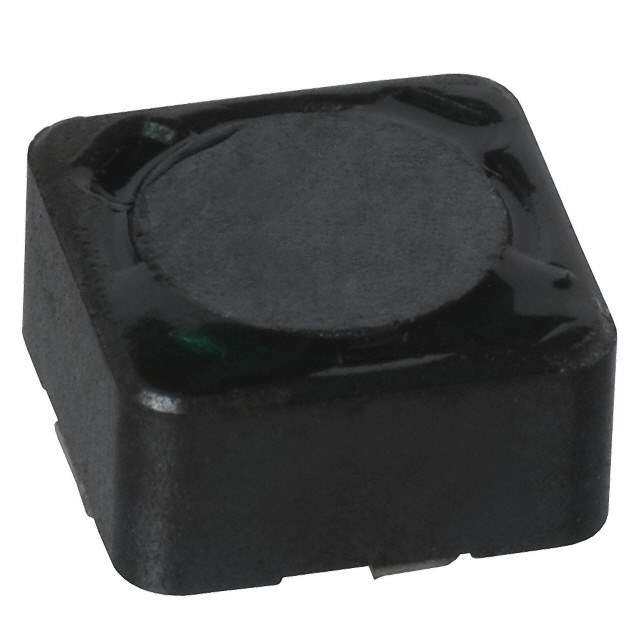

The CDRH74NP-151MC is a shielded power inductor manufactured by Sumida America Components Inc. It is designed for use in DC-DC converters and power supplies where high efficiency and a small footprint are critical. The shielded construction minimizes electromagnetic interference, making it suitable for use in sensitive electronic equipment.

Applications

• DC-DC converters
• Power supplies for portable devices
• Voltage regulators
• Filtering circuits
• Buck and Boost converters

Features

• Shielded construction
• High current capacity
• Low DC resistance
• Compact size
• RoHS compliant

Benefits

• Reduced electromagnetic interference (EMI)
• Efficient power conversion due to low DC resistance
• Small footprint enables compact product designs
• Suitable for high-frequency switching regulators
• Environmentally friendly due to RoHS compliance

Specifications

Inductance: 150 μH

Tolerance: ±20%

DC Resistance (DCR): 0.52 Ohms (Max)

Saturation Current: 1.2 A

Rated Current: 1.1 A

Operating Temperature: -25°C to +85°C
