Same model may have multiple batches, images only for reference.

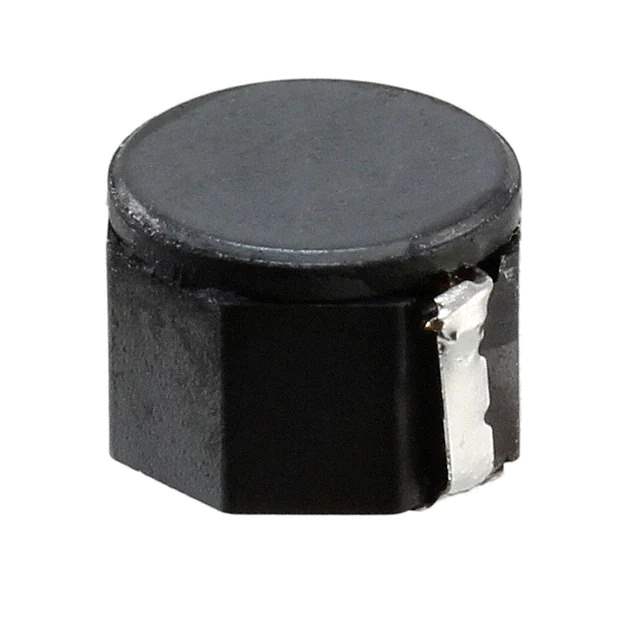

CDRH8D58/LDNP-101NC Real Image
Same model may have multiple batches, images only for reference.

CDRH8D58/LDNP-101NC

Part No CDRH8D58/LDNP-101NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 100UH 1.4A 175MOHM SMD / 100 μH Shielded Inductor 1.4 A 175mOhm Max Nonstandard
Datasheet
CDRH8D58/LDNP-101NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Sumida America Components Inc.
Series CDRH8D58/LD
Package Tape & Reel
Product Status Active
Material - Core Ferrite
Inductance 100 µH
Tolerance ±30%
Current Rating (Amps) 1.4 A
Current - Saturation (Isat) 800mA
Shielding Shielded
DC Resistance (DCR) 175mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max) 0.236" (6.00mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 915260-CDRH8D58/LDNP-101NC
Ultra Librarian 3D Model Ultra Librarian CDRH8D58/LDNP-101NC CAD Model

Description

The CDRH8D58/LDNP-101NC is a fixed inductor from the CDRH8D58/LD series by Sumida America Components Inc.

  • Type: Shielded
  • Size: 0.315" L x 0.315" W (8.00mm x 8.00mm)
  • Inductance: 100 μH
  • Tolerance: ±30%
  • Seated Height: 0.236" (6.00mm)
  • DC Resistance (DCR): 175mOhm
  • Mounting Type: Surface Mountable
  • Package: Nonstandard
  • Current Rating: 1.4 A
  • Current Saturation (Isat): 800mA
  • Operating Temperature: -40°C to 105°C
