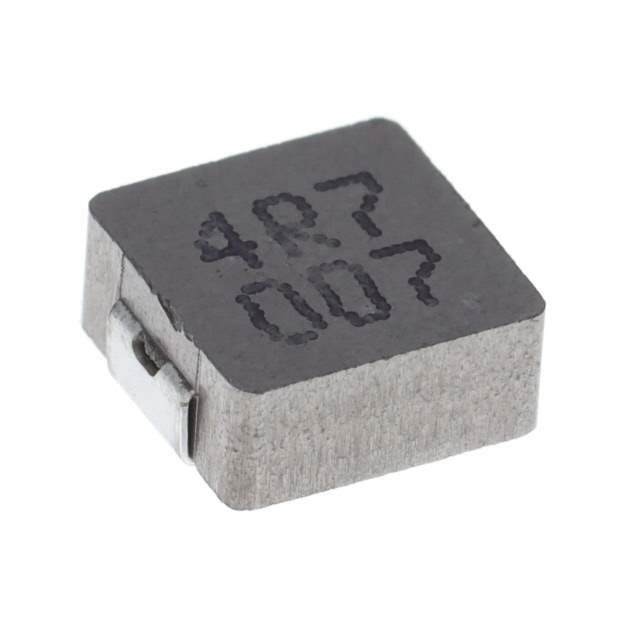

Same model may have multiple batches, images only for reference.

0630CDMCCDS-4R7MC

Name: 0630CDMCCDS-4R7MC
Brand: Sumida America Components Inc.
SKU: 1327482
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	0630CDMCCDS-4R7MC
Manufacturer	Sumida America Components Inc.
Catalog	Fixed Inductors
Description	FIXED IND 4.7UH 6.3A 33MOHM SMD / 4.7 µH Shielded Molded Inductor 6.3 A 33mOhm Max Nonstandard
Datasheet	0630CDMCCDS-4R7MC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Sumida America Components Inc.
Packaging	Reel - TR
Type	Molded
Material - Core	Metal
Inductance	4.7 µH
Tolerance	±20%
Current Rating (Amps)	6.3 A
Current - Saturation (Isat)	6.8A
Shielding	Shielded
DC Resistance (DCR)	33mOhm Max
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Supplier Device Package	SMD
Size / Dimension	0.276" L x 0.260" W (7.00mm x 6.60mm)
Height - Seated (Max)	0.118" (3.00mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	308-2466-2,308-2466-1,308-2466-6,0630CDMCCDS-4R7MC-ND
Standard Package	1,500
Win Source Part Number	1327482-0630CDMCCDS-4R7MC
Ultra Librarian 3D Model	Ultra Librarian 0630CDMCCDS-4R7MC CAD Model

Alternative Products

Description

The Sumida America Components Inc. fixed inductor is a shielded type molded component, with a size of 0.276 inches in length and 0.260 inches in width.

Inductance: 4.7 μH
Tolerance: ±20%
Maximum Seated Height: 0.118 inches
DC Resistance: 33mOhm
Mounting: Surface Mount
Current Rating: 6.3A
Operating Temperature Range: -55°C to 125°C
Package: Reel
Standard Package: 1,500
ROHS3 Compliant: Yes
ECCN: EAR99
