Same model may have multiple batches, images only for reference.

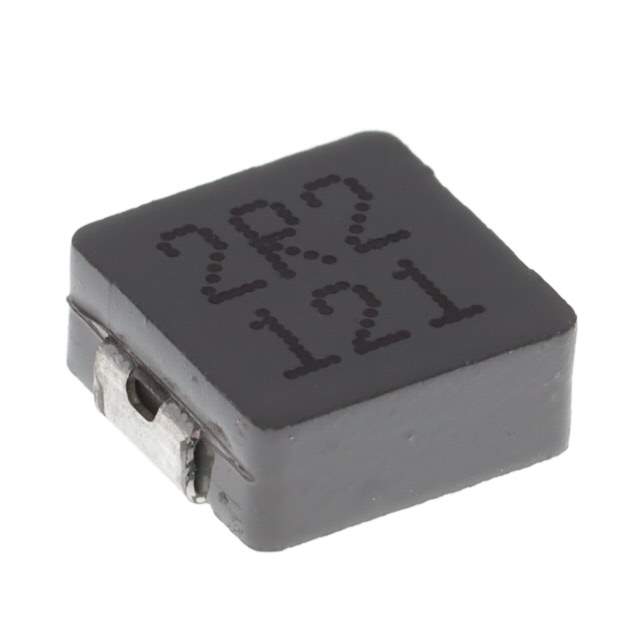

0630CDMCDDS-2R2MC Real Image
Same model may have multiple batches, images only for reference.

0630CDMCDDS-2R2MC

Part No 0630CDMCDDS-2R2MC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 2.2UH 9.3A 15MOHM SMD / 2.2 µH Shielded Molded Inductor 9.3 A 15mOhm Max Nonstandard
Datasheet
0630CDMCDDS-2R2MC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Type Molded
Material - Core Metal
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 9.3 A
Current - Saturation (Isat) 12.3A
Shielding Shielded
DC Resistance (DCR) 15mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Supplier Device Package SMD
Size / Dimension 0.276" L x 0.260" W (7.00mm x 6.60mm)
Height - Seated (Max) 0.118" (3.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 308-2480-2,0630CDMCDDS-2R2MC-ND,308-2480-1,308-2480-6
Standard Package 1,500
Win Source Part Number 1327581-0630CDMCDDS-2R2MC
Ultra Librarian 3D Model Ultra Librarian 0630CDMCDDS-2R2MC CAD Model

Description

The Sumida America Components Inc. 1327581-0630CDMCDDS-2R2MC Fixed Inductor is a high-quality product that is commonly used in various applications.

  • Inductance: 2.2 μH
