Same model may have multiple batches, images only for reference.

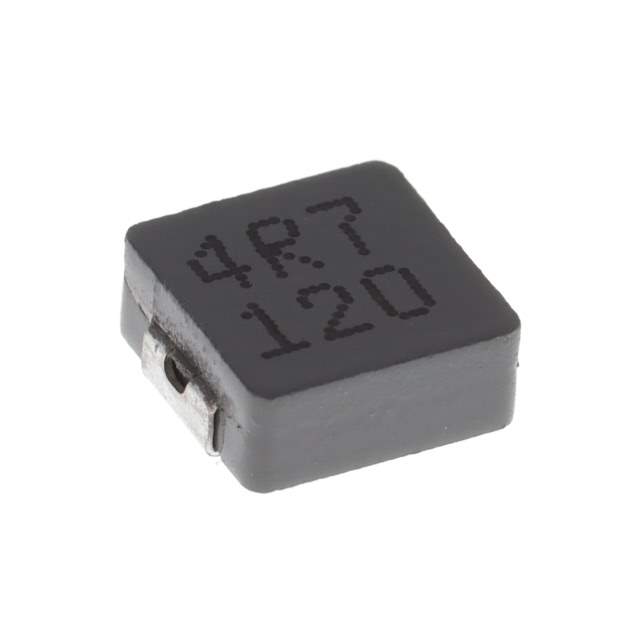

0630CDMCDDS-4R7MC Real Image
Same model may have multiple batches, images only for reference.

0630CDMCDDS-4R7MC

Part No 0630CDMCDDS-4R7MC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 4.7UH 6.3A 33MOHM SMD / 4.7 µH Shielded Molded Inductor 6.3 A 33mOhm Max Nonstandard
Datasheet
0630CDMCDDS-4R7MC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Type Molded
Material - Core Metal
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 6.3 A
Current - Saturation (Isat) 6.8A
Shielding Shielded
DC Resistance (DCR) 33mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Supplier Device Package SMD
Size / Dimension 0.276" L x 0.260" W (7.00mm x 6.60mm)
Height - Seated (Max) 0.118" (3.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 308-2483-6,0630CDMCDDS-4R7MC-ND,308-2483-1,308-2483-2
Standard Package 1,500
Win Source Part Number 1327565-0630CDMCDDS-4R7MC
Ultra Librarian 3D Model Ultra Librarian 0630CDMCDDS-4R7MC CAD Model

Description

The Sumida America Components Inc. 1327565-0630CDMCDDS-4R7MC is a surface mount fixed inductor that belongs to the Inductors, Coils, Chokes category of electronic components.

  • Mounting Type: surface mount
  • Category: Inductors, Coils, Chokes
  • Shielding: shielded
  • Type: molded
  • Height (Max): 0.118" (3.00mm)
  • Size/Dimension: 0.276" L x 0.260" W (7.00mm x 6.60mm)
  • Inductance: 4.7 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 33mOhm Max
  • Current Rating (Amps): 6.3 A
  • ROHS3 Compliant: true
  • Win Source Part Number: 1327565-0630CDMCDDS-4R7MC
