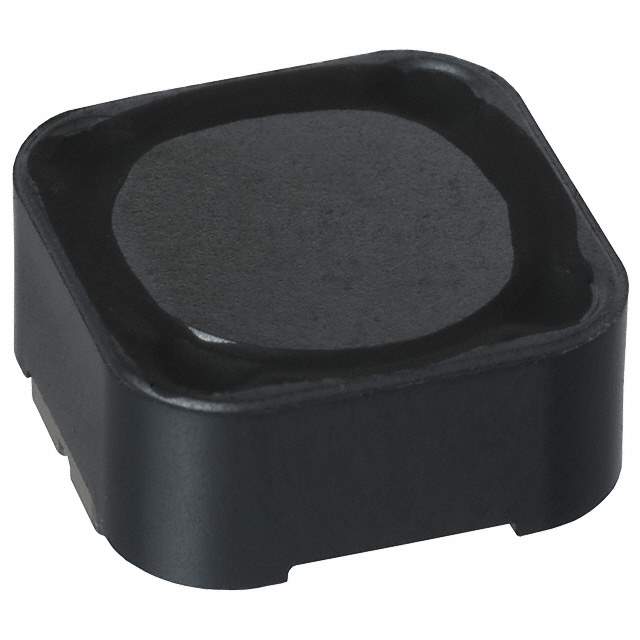

Same model may have multiple batches, images only for reference.

CDRH125NP-150MC

Name: CDRH125NP-150MC
Brand: Sumida America Components Inc.
SKU: 1327614
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	CDRH125NP-150MC
Manufacturer	Sumida America Components Inc.
Catalog	Fixed Inductors
Description	FIXED IND 15UH 3.3A 30 MOHM SMD / 15 µH Shielded Inductor 3.3 A 30mOhm Max Nonstandard
Datasheet	CDRH125NP-150MC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Sumida America Components Inc.
Packaging	Reel - TR
Inductance	15 µH
Tolerance	±20%
Current Rating (Amps)	3.3 A
Shielding	Shielded
DC Resistance (DCR)	30mOhm Max
Temperature Range - Operating	-40°C ~ 100°C
Inductance Frequency - Test	1 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max)	0.236" (6.00mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	CDRH125NP150MC,308-1440-2,308-1440-1,308-1440-6,Q2698303,CDRH125NP-150MC-ND
Standard Package	500
Win Source Part Number	1327614-CDRH125NP-150MC
Ultra Librarian 3D Model	Ultra Librarian CDRH125NP-150MC CAD Model

Alternative Products

Description

The Sumida America Components Inc. CDRH125NP-150MC is a fixed inductor that is shielded and has a size of 0.472 inches x 0.472 inches.

Tolerance: +/- 20%
Maximum Operating Temperature Range: -40 degrees Celsius to 100 degrees Celsius
Win Source Part Number: 1327614-CDRH125NP-150MC
RoHS3 compliant: Yes
Current Rating: 3.3 A
