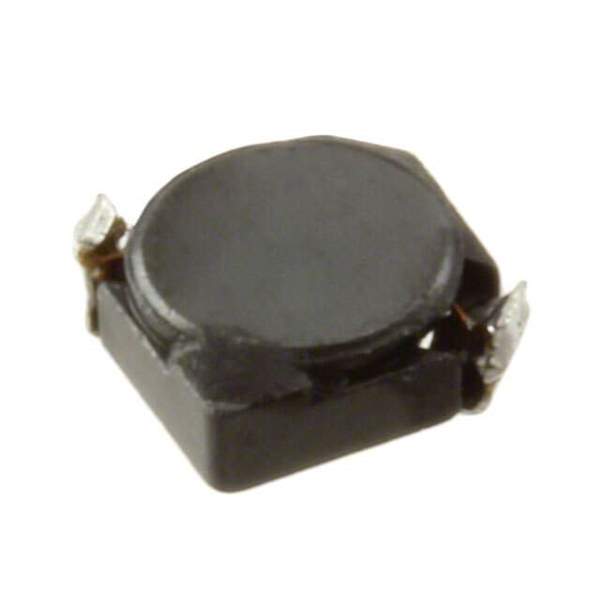

CDRH3D14/HPNP-100NC Real Image
Same model may have multiple batches, images only for reference.

CDRH3D14/HPNP-100NC

Part No CDRH3D14/HPNP-100NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 10UH 670MA 440MOHM SMD / 10 µH Shielded Inductor 670 mA 440mOhm Max Nonstandard
Datasheet
CDRH3D14/HPNP-100NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Material - Core Ferrite
Inductance 10 µH
Tolerance ±25%
Current Rating (Amps) 670 mA
Current - Saturation (Isat) 1A
Shielding Shielded
DC Resistance (DCR) 440mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max) 0.059" (1.50mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 308-1969-2,308-1969-1,308-1969-6
Standard Package 1,000
Win Source Part Number 1327485-CDRH3D14/HPNP-100NC
Ultra Librarian 3D Model Ultra Librarian CDRH3D14/HPNP-100NC CAD Model

Description

The Sumida America Components Inc. CDRH3D14/HPNP-100NC is a shielded fixed inductor with a 10 µH inductance and a current rating of 670 mA.

  • Inductance: 10 µH
  • Current Rating: 670 mA
  • Size: 0.150" L x 0.150" W
  • Tolerance: ±25%
  • DC Resistance: 440mOhm max
  • Mounting: Surface Mounted
  • Temperature Range: -40°C to 105°C
  • ROHS3 Compliant: Yes
