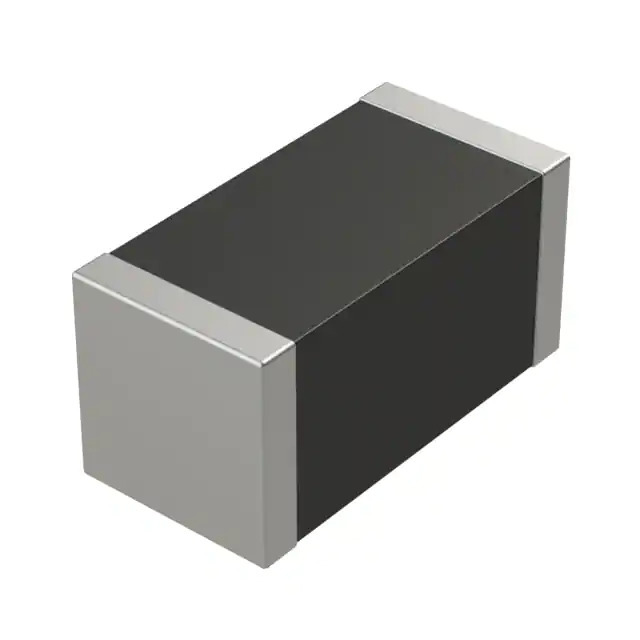

EPZ1005D800-2R3T Sunlord
Same model may have multiple batches, images only for reference.

EPZ1005D800-2R3T

Part No EPZ1005D800-2R3T
Manufacturer Sunlord
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 80 OHM 0402 1LN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Ferrite Beads and Chips
Mfr Shenzhen Sunlord Electronics Co., Ltd.
Series EPZ
Package Tape & Reel
Product Status Active
Filter Type Power Line
Number of Lines 1
Impedance @ Frequency 80 Ohms @ 100 MHz
Current Rating (Max) 2.3A
DC Resistance (DCR) (Max) 38mOhm
Ratings -
Temperature Range - Operating -55°C ~ 125°C
Package / Case 0402 (1005 Metric)
Mounting Type Surface Mount
Height (Max) 0.026" (0.65mm)
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1368946-EPZ1005D800-2R3T
Ultra Librarian 3D Model Ultra Librarian EPZ1005D800-2R3T CAD Model

Description

The EPZ1005D800-2R3T is a ferrite bead chip designed for power line filtering applications. It is manufactured by Shenzhen Sunlord Electronics Co., Ltd. and belongs to the EPZ series.

  • Filter Type: Power Line
  • Series: EPZ
  • Package / Case: 0402 (1005 Metric)
  • Mounting Type: Surface Mount
  • Operating Temperature: -55°C ~ 125°C
  • Impedance @ Frequency: 80 Ohms @ 100 MHz
  • Current Max: 2.3A
  • DC Resistance (DCR): 38 mOhm
  • Packaging: Tape & Reel (TR)
  • Status: Active
  • Size / Dimension: 0.039" L x 0.020" W (1.00mm x 0.50mm)
