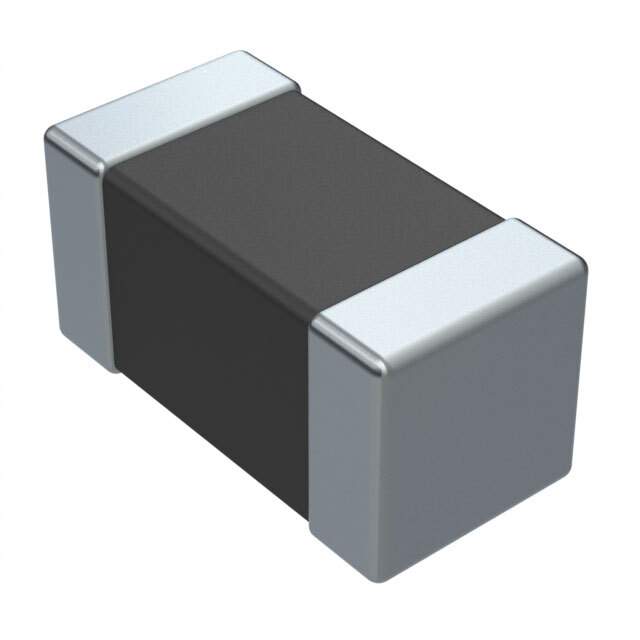

The PZ1608U101-2R0TF is a wire-wound chip inductor manufactured by Sunlord. It's designed for use in high-frequency circuits and power applications where small size and good performance are required.

Applications:

• Mobile Phones: Used for impedance matching and filtering in RF circuits.
• Bluetooth devices: Integrated into Bluetooth modules for signal conditioning.
• Wireless LAN (WLAN) devices: Employed in WLAN circuits for impedance matching and filtering.
• Power Supplies: Used in DC-DC converters as an energy storage element.
• RF circuits: Implemented in various RF applications for impedance matching and filtering.
• Tablets and other portable devices: Filtering and impedance matching for reduced noise.

Features:

• Wire-wound construction: Provides high Q-factor and excellent self-resonant frequency.
• Small size (1608): Compact size for space-constrained applications.
• High current handling: Capable of handling significant current without saturation.
• Tight tolerance: Offers precise inductance value for accurate circuit performance.
• RoHS compliant: Environmentally friendly, lead-free construction.
• High self-resonant frequency (SRF): Enhances performance in high-frequency applications.

Benefits:

• Improved Signal Quality: Provides excellent filtering and impedance matching for optimal signal transmission.
• Reduced Noise: Minimizes unwanted noise and interference in sensitive circuits.
• Increased Efficiency: High Q-factor and low DC resistance minimize power losses.
• Compact Design: Small size allows for integration into space-constrained applications.
• Reliable Performance: Offers stable and consistent performance over a wide range of operating conditions.

Additional Details:

The '101' in the part number indicates an inductance value of 100 nH (10 x 10^1 nH). The '2R0' indicates a rated current of 2.0 Amps. The PZ series inductors by Sunlord are often used in impedance matching, filtering, and decoupling applications. They feature a ceramic core and are designed for reflow soldering. The wire-wound construction provides a higher Q factor than multilayer chip inductors. Specific parameters like SRF, DCR (DC resistance) and current rating depend on the exact inductor and can be found in the datasheet. These inductors are suitable for high-frequency applications due to their stable inductance and high SRF.
