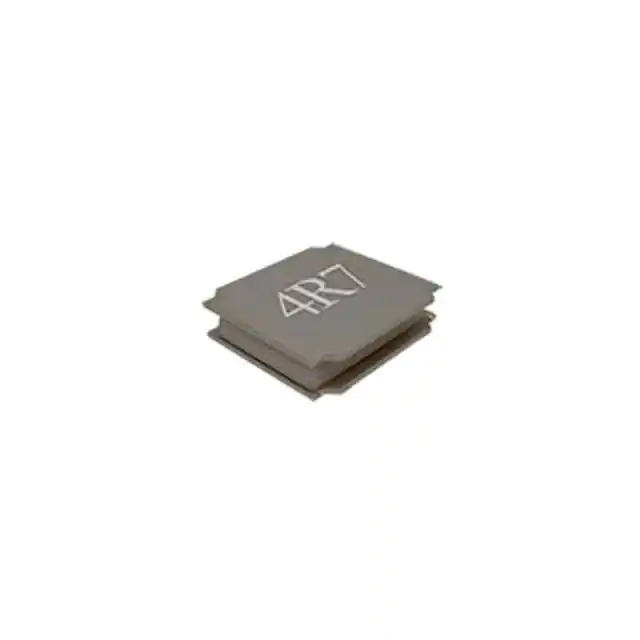

Same model may have multiple batches, images only for reference.
WPN4012H6R8MT Sunlord
Same model may have multiple batches, images only for reference.

WPN4012H6R8MT

Part No WPN4012H6R8MT
Manufacturer Sunlord
Catalog Fixed Inductors
Description FIXED IND 6.8UH 1.6A 226MOHM SMD
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Shenzhen Sunlord Electronics Co., Ltd.
Series WPN
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 6.8 µH
Tolerance ±20%
Current Rating (Amps) 1.6 A
Current - Saturation (Isat) 1.6A
Shielding Shielded
DC Resistance (DCR) 226mOhm Max
Q @ Freq -
Frequency - Self Resonant 17MHz
Ratings -
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Features -
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) 0.047" (1.20mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1370420-WPN4012H6R8MT
Ultra Librarian 3D Model Ultra Librarian WPN4012H6R8MT CAD Model

Description

The WPN4012H6R8MT is a fixed inductor with a drum core design. It is manufactured by Shenzhen Sunlord Electronics Co., Ltd. as part of the WPN series.

  • Size: 0.157" L x 0.157" W (4.00mm x 4.00mm)
  • Height: 0.047" (1.20mm)
  • Inductance: 6.8µH
  • Maximum Current Rating: 1.6A
  • DC Resistance: 226mOhm maximum
  • Operating Temperature: -40°C to 125°C
  • Mounting: Surface mountable
  • Package: Nonstandard
  • ECCN: EAR99
