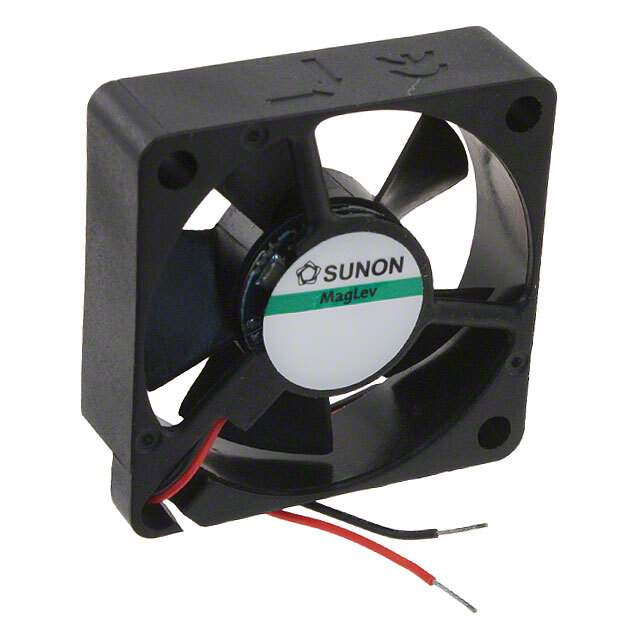

MC35100V1-000U-A99 Real Image
Same model may have multiple batches, images only for reference.

MC35100V1-000U-A99

Part No MC35100V1-000U-A99
Manufacturer Sunon Fans
Catalog DC Fans
Description FAN AXIAL 35X10MM VAPO 5VDC WIRE / Fan Tubeaxial 5VDC Square - 35mm L x 35mm H Vapo-Bearing™ 7.0 CFM (0.196m³/min) 2 Wire Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>DC Brushless Fans (BLDC)
Mfr Sunon Fans
Series MagLev® MC
Package Tray
Product Status Obsolete
Voltage - Rated 5VDC
Dimension Square - 35mm L x 35mm H
Width 10.00mm
Air Flow 7.0 CFM (0.196m³/min)
Static Pressure 0.180 in H2O (44.8 Pa)
Bearing Type Vapo-Bearing™
Fan Type Tubeaxial
Features Auto Restart
Noise 28.0dB(A)
Power (Watts) 750 mW
RPM 9500 RPM
Termination 2 Wire Leads
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CUR, TUV, UL
Weight 0.024 lb (10.89 g)
Current Rating (Amps) 0.150A
Voltage Range 2.5 ~ 6VDC
Material - Frame Polybutylene Terephthalate (PBT)
Material - Blade Polybutylene Terephthalate (PBT)
Lifetime @ Temp. 60000 Hrs @ 40°C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Other Names MC35100V1000UA99,259-1560
Standard Package 30
Win Source Part Number 1229069-MC35100V1-000U-A99
Ultra Librarian 3D Model Ultra Librarian MC35100V1-000U-A99 CAD Model

Description

The MC35100V1-000U-A99 is a DC brushless fan (BLDC) from the MagLev® MC series manufactured by Sunon Fans.

  • Auto-Restart: Yes
  • Termination: 2 Wire Leads
  • Voltage Range: 2.5 ~ 6VDC
  • Power Rating: 750mW
  • Lifetime: 60000 Hrs @ 40°C
  • Weight: 0.024 lb (10.89 g)
  • Width: 10.00mm
  • Dimension: Square - 35mm L x 35mm H
  • Air Flow: 7.0 CFM (0.196m³/min)
  • Static Pressure: 0.180 in H2O (44.8 Pa)
  • Bearing Type: Vapo-Bearing™
  • Fan Type: Tubeaxial
  • Noise Level: 28.0dB(A)
  • RPM: 9500 RPM
  • Frame Material: Polybutylene Terephthalate (PBT)
  • Blade Material: Polybutylene Terephthalate (PBT)
  • Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
