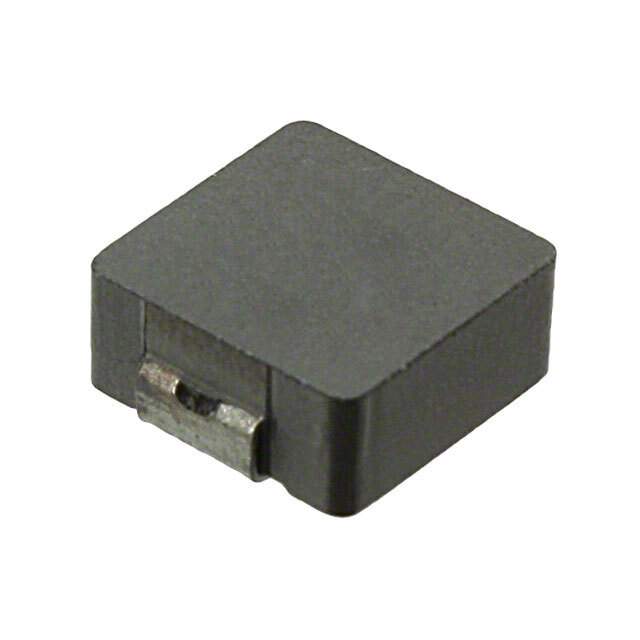

Same model may have multiple batches, images only for reference.

PCMB063T-1R2MS

Name: PCMB063T-1R2MS
Brand: Susumu
SKU: 1163594
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PCMB063T-1R2MS
Manufacturer	Susumu
Catalog	Fixed Inductors
Description	FIXED IND 1.2UH 10A 12 MOHM SMD / 1.2 µH Unshielded Inductor 10 A 12mOhm Max Nonstandard
Datasheet	PCMB063T-1R2MS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Susumu
Series	PCMB
Package	Tape & Reel (TR)
Inductance	1.2 µH
Tolerance	±20%
Current Rating (Amps)	10 A
Current - Saturation (Isat)	20A
Shielding	Unshielded
DC Resistance (DCR)	12mOhm Max
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.274" L x 0.260" W (6.95mm x 6.60mm)
Height - Seated (Max)	0.110" (2.80mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Standard Package	1,000
Win Source Part Number	1163594-PCMB063T-1R2MS
Ultra Librarian 3D Model	Ultra Librarian PCMB063T-1R2MS CAD Model

Alternative Products

Description

The PCMB063T-1R2MS from Susumu is a 1.2 μH fixed inductor that is part of the PCMB series.

Inductance: 1.2 μH
Series: PCMB
Package: Non-Standard
Packaging: Tape and Reel, 1000 Units per Package
Shielding: Unshielded
DC Resistance (DCR): 12mOhm Max
Tolerance: ±20%
Current Rating (Amps): 10A
Dimension: 0.274" L x 0.260" W (6.95mm x 6.60mm)
Height-Seated: 0.110" (2.80mm)
REACH: Unaffected
HTSUS Code: 8504.50.4000
