Same model may have multiple batches, images only for reference.

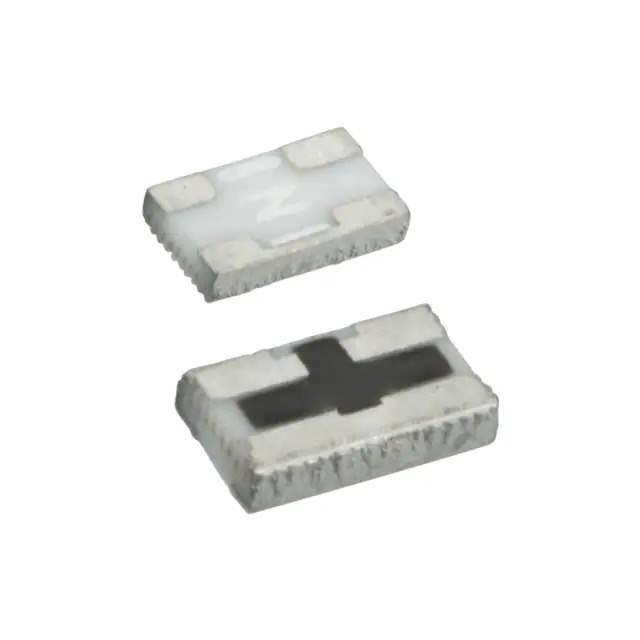

PXV1220S-3DBN2-T02 Real Image
Same model may have multiple batches, images only for reference.

PXV1220S-3DBN2-T02

Part No PXV1220S-3DBN2-T02
Manufacturer Susumu
Catalog Attenuators
Description RF ATTENUATOR 3DB 50OHM 0805 / RF Attenuators 3dB 0 Hz ~ 3 GHz 50 Ohms 63mW 0805 (2012 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - Attenuators
Mfr Susumu
Series PxV
Package Tape & Reel
Product Status Active
Attenuation Value 3dB
Frequency Range 0 Hz ~ 3 GHz
Power (Watts) 63mW
Impedance 50 Ohms
Package / Case 0805 (2012 Metric)
Standard Package 200 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0020
Win Source Part Number 931136-PXV1220S-3DBN2-T02
Ultra Librarian 3D Model Ultra Librarian PXV1220S-3DBN2-T02 CAD Model

Description

The PXV1220S-3DBN2-T02 is an attenuator in the PxV series.

  • Applications: RF and wireless
  • Impedance: 50 Ohms
  • Attenuation: 3dB
  • Frequency Range: 0 Hz to 3 GHz
  • Package: 0805 (2012 Metric)
  • Mounting Type: Surface Mountable
  • Product Status: Active
  • Standard Package: 200 pcs
  • Manufacturer: Susumu
