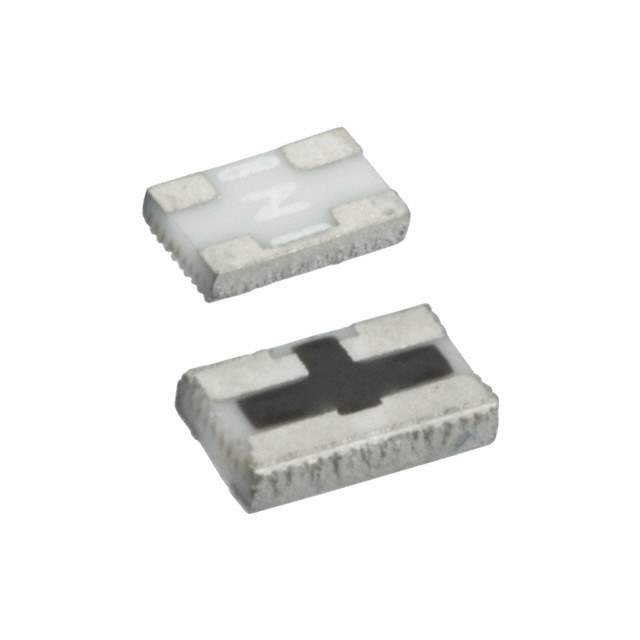

PXV1220S-4DBN2-T02 Real Image1 PXV1220S-4DBN2-T02 Real Image2
Same model may have multiple batches, images only for reference.
PXV1220S-4DBN2-T02 Real Image1 PXV1220S-4DBN2-T02 Real Image2
PXV1220S-4DBN2-T02 Real Image1 PXV1220S-4DBN2-T02 Real Image2
Same model may have multiple batches, images only for reference.

PXV1220S-4DBN2-T02

Part No PXV1220S-4DBN2-T02
Manufacturer Susumu
Catalog Attenuators
Description RF ATTENUATOR 4DB 50OHM 0805 / RF Attenuators 4dB 0 Hz ~ 3 GHz 50 Ohms 63mW 0805 (2012 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>Attenuators
Mfr Susumu
Series PxV
Package Tape & Reel
Attenuation Value 4dB
Frequency Range 0 Hz ~ 3 GHz
Power (Watts) 63mW
Impedance 50 Ohms
Package / Case 0805 (2012 Metric)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0020
Other Names PXV1220S4DBN2T02,408-1504-1,408-1504-2,408-1504-6
Standard Package 200
Win Source Part Number 1021203-PXV1220S-4DBN2-T02
Ultra Librarian 3D Model Ultra Librarian PXV1220S-4DBN2-T02 CAD Model

Description

The Susumu PXV1220S-4DBN2-T02 is an attenuator that belongs to the category of RF/IF and RFID manufactured by Susumu.

  • Series: PxV
  • Impedance: 50 Ohms
  • Power Rating: 63mW
  • Frequency Range: 0 Hz to 3 GHz
  • Attenuation Value: 4dB
  • Package: Tape and reel
