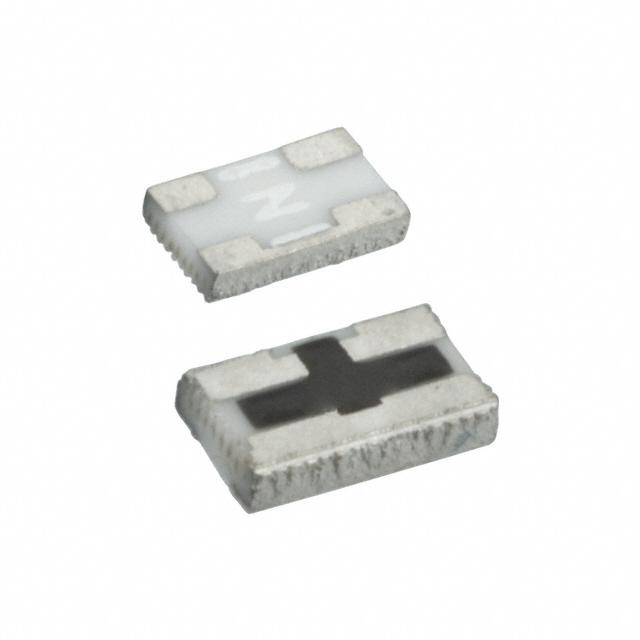

Same model may have multiple batches, images only for reference.
PXV1220S-8DBN2-T Susumu
Same model may have multiple batches, images only for reference.

PXV1220S-8DBN2-T

Part No PXV1220S-8DBN2-T
Manufacturer Susumu
Catalog Attenuators
Description RF ATTENUATOR 8DB 50OHM 0805 / RF Attenuators 8dB 0 Hz ~ 3 GHz 50 Ohms 63mW 0805 (2012 Metric)
Datasheet
PXV1220S-8DBN2-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - Attenuators
Mfr Susumu
Series PxV
Package Tape & Reel
Product Status Active
Attenuation Value 8dB
Frequency Range 0 Hz ~ 3 GHz
Power (Watts) 63mW
Impedance 50 Ohms
Package / Case 0805 (2012 Metric)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0020
Win Source Part Number 284967-PXV1220S-8DBN2-T
Ultra Librarian 3D Model Ultra Librarian PXV1220S-8DBN2-T CAD Model

Description

The PXV1220S-8DBN2-T is an attenuator from Susumu. It belongs to the PxV series and is designed for RF and wireless applications. This 0805 (2012 Metric) package attenuator offers an attenuation value of 8dB and has an impedance of 50 Ohms. With a power rating of 63mW and a frequency range of 0 Hz to 3 GHz, it provides reliable signal attenuation in various communication systems. The PXV1220S-8DBN2-T is available in a standard package of 1,000 pcs and is packaged in tape and reel. It is REACH unaffected and has an ECCN of EAR99. This attenuator is suitable for use in RF amplifiers, transceivers, and test equipment.
