Same model may have multiple batches, images only for reference.

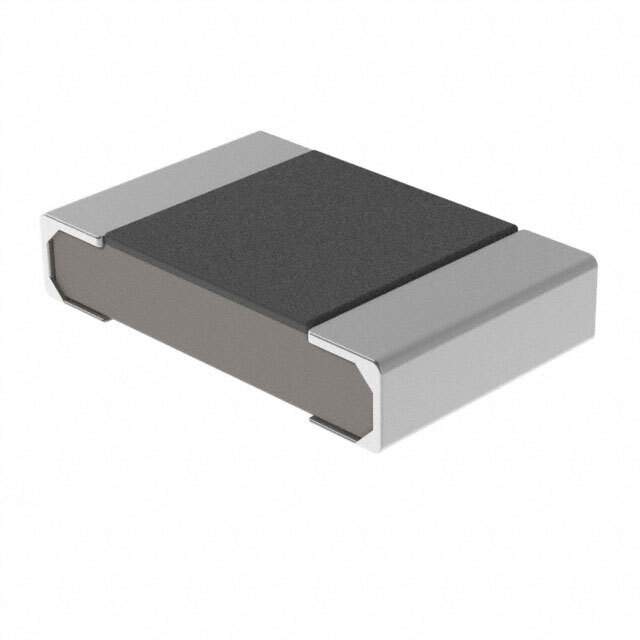

RG2012N-4023-D-T5 Real Image
Same model may have multiple batches, images only for reference.

RG2012N-4023-D-T5

Part No RG2012N-4023-D-T5
Manufacturer Susumu
Catalog Chip Resistor - Surface Mount
Description RES SMD 402K OHM 0.5% 1/8W 0805 / 402 kOhms ±0.5% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) Anti-Sulfur, Automotive AEC-Q200 Thin Film
Datasheet
RG2012N-4023-D-T5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Susumu
Series RG
Package Tape & Reel (TR)
Resistance 402 kOhms
Tolerance ±0.5%
Power (Watts) 0.125W, 1/8W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200
Temperature Coefficient ±10ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Ratings AEC-Q200
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.020" (0.50mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Standard Package 5,000
Win Source Part Number 1007643-RG2012N-4023-D-T5
Ultra Librarian 3D Model Ultra Librarian RG2012N-4023-D-T5 CAD Model

Description

The RG series chip resistor from Susumu is a high-quality, thin-film resistor designed for use in a variety of electronic circuits.

  • Resistance: 402 kOhms
  • Power Rating: 0.125W
  • Mount: Surface-Mount
  • Tolerance: ±0.5%
  • Temperature Coefficient: ±10ppm/°C
  • AEC-Q200: Rated
  • Anti-Sulfur: Yes
  • Package Size: 0805 (2012 Metric)
  • Packaging: Tape and Reel
  • Height: 0.020 inches
  • Temperature Range: -55°C to 155°C
