Same model may have multiple batches, images only for reference.

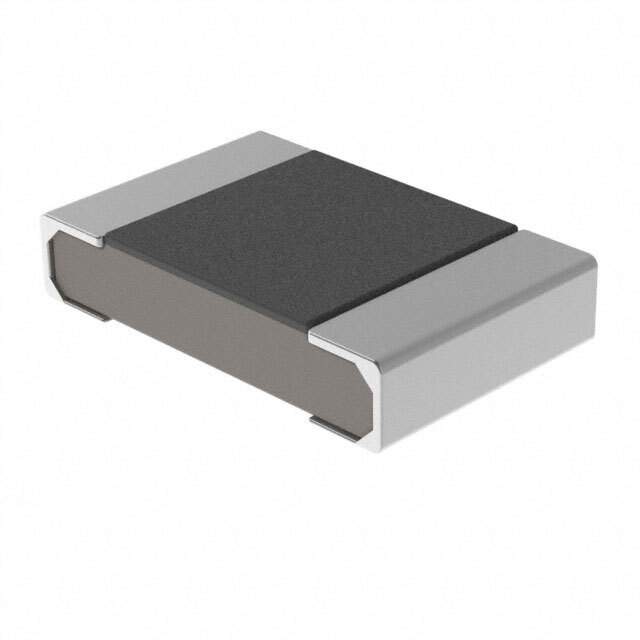

RG2012P-563-B-T5 Real Image
Same model may have multiple batches, images only for reference.

RG2012P-563-B-T5

Part No RG2012P-563-B-T5
Manufacturer Susumu
Catalog Chip Resistor - Surface Mount
Description RES SMD 56K OHM 0.1% 1/8W 0805
Datasheet
RG2012P-563-B-T5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Susumu
Packaging Reel - TR
Status Active
Resistance (Ohms) 56k
Tolerance ±0.1%
Power (Watts) 0.125W, 1/8W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C to 155°C
Case / Package 0805
Height - Seated (Max) 0.020" (0.50mm)
Number of Terminations 2
Win Source Part Number 110947-RG2012P-563-B-T5
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RG2012P-563-B-T5 CAD Model

Description

The Susumu RG2012P-563-B-T5 is a thin film resistor designed for anti-sulfur and automotive AEC-Q200 applications.

  • Tolerance: ±0.1%
  • Temperature Coefficient: ±25ppm/°C
  • Power Rating: 0.125W (1/8W)
  • Resistance: 56k ohms
  • Package: 0805
  • Mounting: Reel - TR technology
  • Category: Resistors
  • Popularity: Medium
