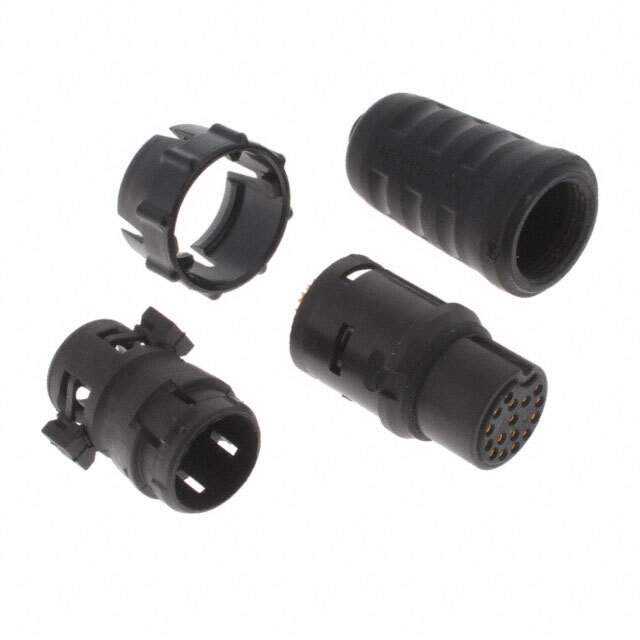

EN3C16F26SX Real Image
Same model may have multiple batches, images only for reference.

EN3C16F26SX

Part No EN3C16F26SX
Manufacturer Switchcraft Inc.
Catalog Circular Connectors
Description CONN PLUG FMALE 16P SOLDER CUP  /  16 Position Circular Connector Plug, Female Sockets Solder Cup
Datasheet
EN3C16F26SX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr Switchcraft Inc.
Series EN3®
Package Bulk
Connector Type Plug, Female Sockets
Number of Positions 16
Mounting Type Free Hanging (In-Line)
Termination Solder Cup
Fastening Type Bayonet Lock
Orientation Keyed
Primary Material Plastic
Shell Material Thermoplastic
Contact Finish - Mating Gold
Color Black
Ingress Protection IP66/IP68 - Dust Tight, Water Resistant, Waterproof
Material Flammability Rating UL94 V-0
Features Backshell, Cable Clamp, Coupling Nut
Shielding Unshielded
Current Rating (Amps) 3A
Voltage Rating 250VAC/DC
Cable Opening 0.160" ~ 0.265" (4.06mm ~ 6.73mm)
Temperature Range - Operating -40°C ~ 65°C
Backshell Material, Plating Thermoplastic
Contact Material Copper Alloy
Insert Material Elastomer
Applications General Purpose, Instrumentation, Marine, Medical
Base Product Number EN3C16
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4020
Other Names EN3C16F26S,EN3C16F26S-ND,EN3C16F26SX-ND,SC2666
Standard Package 100
Win Source Part Number 1127993-EN3C16F26SX
Ultra Librarian 3D Model Ultra Librarian EN3C16F26SX CAD Model

Description

The EN3C16F26SX is a 16 position, female socket circular connector from Switchcraft Inc.

  • Fastening type: bayonet lock
  • Mounting: free hanging (in-line)
  • Voltage rating: 250VAC/DC
  • Current rating: 3A
  • Ingress protection: IP66/IP68
  • Temperature range: -40°C to 65°C
  • Shell material: thermoplastic
  • Insert material: elastomer
  • Applications: general purpose, instrumentation, marine, and medical
