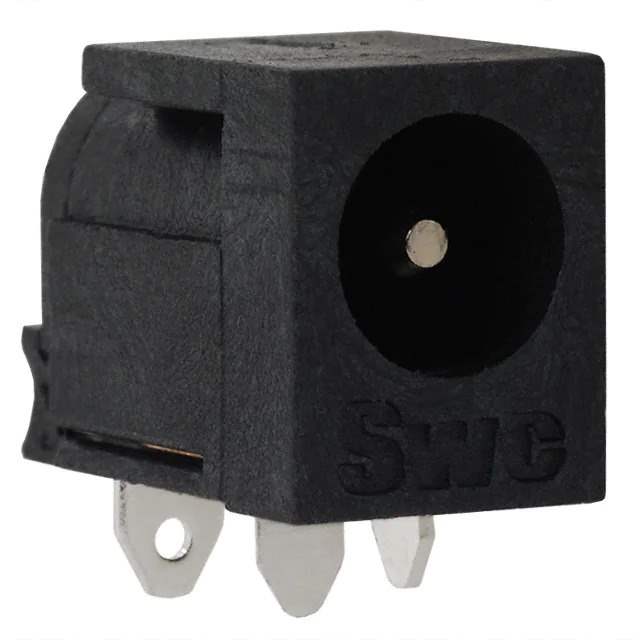

The 848716-RAPC722X is a power connector in the form of a jack. 848716-RAPC722X is manufactured by Switchcraft Inc..

• Connector Type: Jack
• Gender: Male
• Number of Conductors: 2
• Number of Contacts/Ports: 3 Contacts
• Internal Switch(s): Single Switch, Normally Closed (NC)
• Mounting Type: Through Hole, Right Angle
• Termination: Solder Eyelet
• Shielding: Unshielded
• Features: -
• Contact Material: Brass
• Contact Finish: Silver
• Housing Material: Thermoplastic
• Industry Recognized Mating Diameter: 2.00mm ID (0.079"), 5.50mm OD (0.217")
• Actual Diameter: 0.076" (1.93mm ID), 0.248" (6.30mm OD)
• Current Rating (Amps): 5A
• Voltage - Rated: 24VDC
• Operating Temperature: -40°C ~ 105°C
• Color: Black
• ECCN: EAR99
• Series: RAPC72
• Packaging: Bulk
