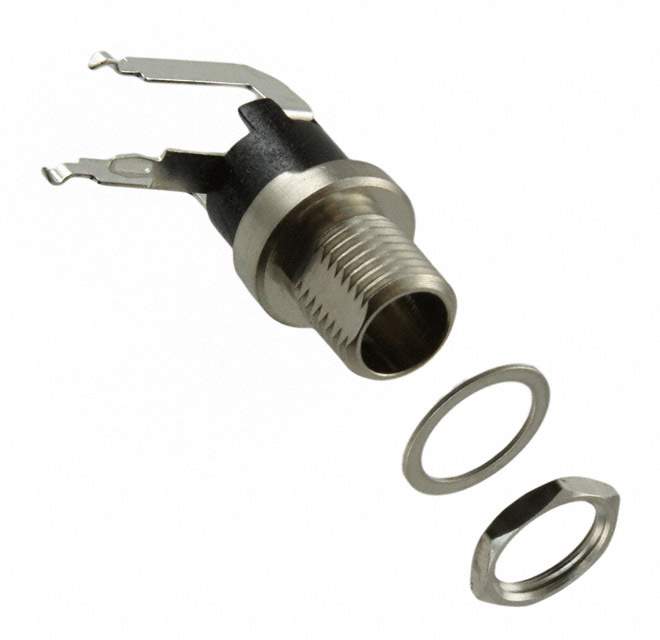

The L712RA barrel connector is used for power connectors in a variety of applications.

• Includes: Mounting Hardware and Thread Lock
• Connector Type: Jack
• Termination: Solder
• Packaging: Bulk
• Manufacturer: Switchcraft Inc.
• Standard Package: 100
• Contact Material: Copper Alloy
• Gender: Male
• Ingress Protection: None
• Shielding: No
• Material Flammability Rating: No
• Voltage Rated: 48VDC
• Mounting Feature: Bulkhead - Front Side Nut
• Body Material: Copper Alloy
• Positions/Contacts: 2 Conductors, 3 Contacts
• Internal Switch(s): Single Switch, Normally Closed
• Pieces: 3 (1 connector, 1 nut, 1 washer)
• Contact Plating: Silver
• Mating Diameter: 2.50mm ID (0.098"), 5.50mm OD (0.217")
• Actual Diameter: 0.098" (2.50mm ID), 0.228" (5.80mm OD)
• Insulation Color: No
• Mating Length/Depth: No
• Thread Size: 5/16"-32
• Mounting Type: Panel Mount, Through Hole, Right Angle
• Body Color: Silver and Black
• ECCN: EAR99
• HTSUS: 8536.69.4040
• REACH: Unaffected
• Operating Temperature: No
• MSL Level: No
