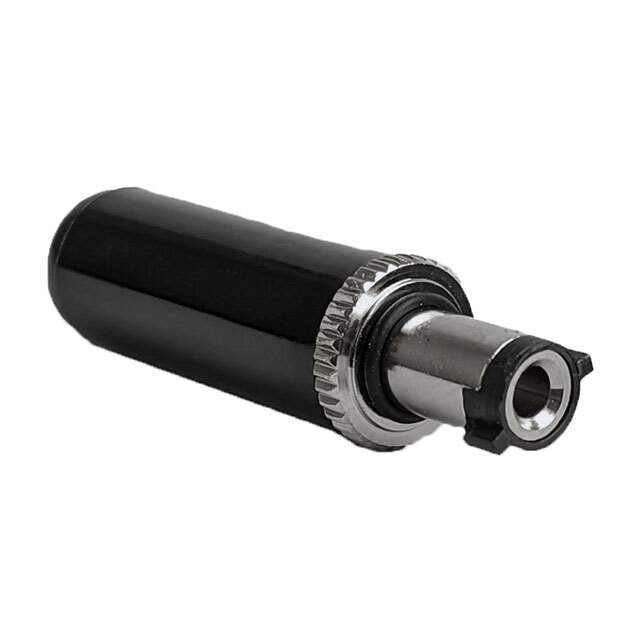

S760BKZ Real Image
Same model may have multiple batches, images only for reference.

S760BKZ

Part No S760BKZ
Manufacturer Switchcraft Inc.
Catalog Barrel - Power Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Barrel - Power Connectors
Mfr Switchcraft Inc.
Package Bulk
Connector Type Plug
Gender Female
Industry Recognized Mating Diameter 2.00mm ID (0.079"), 5.50mm OD (0.217")
Actual Diameter 0.079" (2.00mm ID), 0.217" (5.50mm OD)
Number of Positions/Contacts 2 Conductors, 2 Contacts
Internal Switch(s) Does Not Contain Switch
Mounting Type Free Hanging (In-Line)
Termination Solder Eyelet(s)
Shielding Unshielded
Insulation Color Black
Current Rating (Amps) 2 A
Mating Length/Depth 0.374" (9.50mm)
Contact Material - Plating Tin
Body Material Brass
Includes 3 pcs - 1 Connector, 1 Handle, 1 Insulator Tube
Housing Material Thermoplastic
Contact Material Brass
Body Color Silver, Black
Base Product Number S760
Other Names SC3838
Standard Package 100
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1294267-S760BKZ
Ultra Librarian 3D Model Ultra Librarian S760BKZ CAD Model

Description

The Switchcraft Inc. S760BKZ is a female connector suitable for use in various electronic devices.

  • Category: Barrel-power connector
  • Connector Type: Plug
  • Win Source Part Number: 1294267-S760BKZ
  • Packaging: Bulk packaging
  • Standard Packages: 100
  • Industry Recognized Mating Diameter: 2.00mm ID (0.079"), 5.50mm OD (0.217")
  • Contact Material: Brass
  • Contact Material Plating: Tin plating
