Same model may have multiple batches, images only for reference.

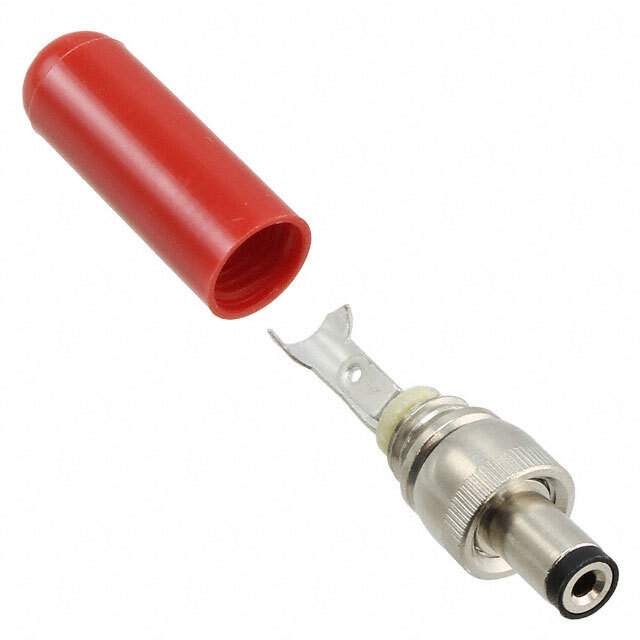

S766K Real Image
Same model may have multiple batches, images only for reference.

S766K

Part No S766K
Manufacturer Switchcraft Inc.
Catalog Barrel - Power Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Barrel - Power Connectors
Mfr Switchcraft Inc.
Package Bulk
Connector Type Plug
Gender Female
Industry Recognized Mating Diameter 2.00mm ID (0.079"), 5.50mm OD (0.217")
Actual Diameter 0.079" (2.00mm ID), 0.217" (5.50mm OD)
Number of Positions/Contacts 2 Conductors, 2 Contacts
Internal Switch(s) Does Not Contain Switch
Mounting Type Free Hanging (In-Line)
Termination Solder Eyelet(s)
Shielding Unshielded
Features Thread Lock
Insulation Color Red
Current Rating (Amps) 5 A
Contact Material - Plating Tin
Body Material Brass
Includes 2 pcs - 1 Connector, 1 Handle
Housing Material Thermoplastic
Contact Material Brass
Body Color Silver, Black
Other Names S766K,SC2754
Standard Package 100
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1294271-S766K
Ultra Librarian 3D Model Ultra Librarian S766K CAD Model

Description

The Switchcraft Inc. 1294271-S766K is a connector electronic component.

  • Category: Connectors, interconnects > barrel - power connectors
  • Connector Type: Plug
  • Termination: Solder eyelet(s)
  • Package: Bulk
  • Standard Package: 100
  • Contact Material: Brass
  • Gender: Female
  • Housing Material: Thermoplastic
  • Material Flammability Rating: Not specified
  • Conductors: 2
  • Contacts: 2
  • Contact Material Plating: Tin
  • Industry Recognized Mating Diameter: 2.00mm ID (0.079"), 5.50mm OD (0.217")
  • Actual Diameter: 0.079" (2.00mm ID), 0.217" (5.50mm OD)
  • Insulation Color: Red
  • Mounting Type: Free hanging (in-line)
  • Current Rating (Amps): 5 A
