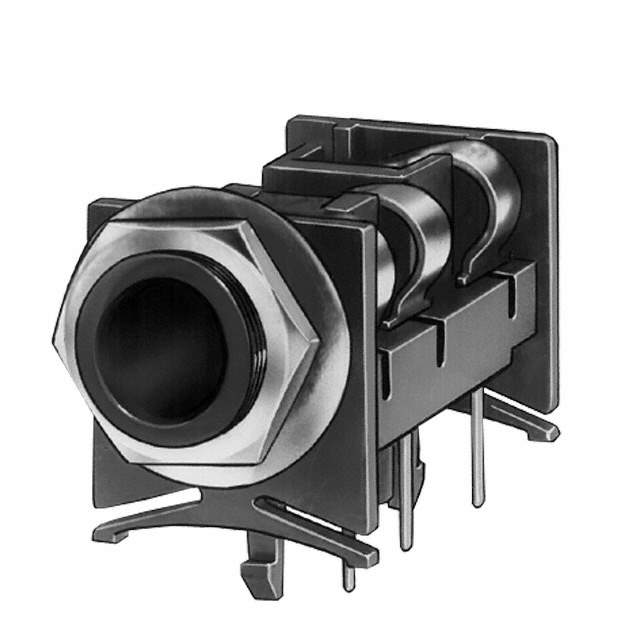

SN49B12B Real Image
Same model may have multiple batches, images only for reference.

SN49B12B

Part No SN49B12B
Manufacturer Switchcraft Inc.
Catalog Barrel - Audio Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Barrel - Audio Connectors
Mfr Switchcraft Inc.
Series SN49B
Package Bulk
Connector Type Phone Jack
Gender Female
Signal Lines Stereo (3 Conductor, TRS)
Industry Recognized Mating Diameter 6.35mm (0.250", 1/4") - Headphone
Actual Diameter 0.250" (6.35mm)
Number of Positions/Contacts 3 Conductors, 3 Contacts
Internal Switch(s) Does Not Contain Switch
Mounting Type Through Hole, Right Angle
Termination Solder
Shielding Unshielded
Features Mounting Hardware, Thread Lock
Contact Material - Plating Nickel
Body Color Black
Includes 3 pcs - 1 Connector, 1 Nut, 1 Washer
Housing Material Thermoplastic
Contact Material Brass
Thread Size 3/8"-32
Base Product Number SN49B1
Other Names SC1502,SN49B12B,Q1147436,SC1522,SC1502
Standard Package 100
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1294283-SN49B12B
Ultra Librarian 3D Model Ultra Librarian SN49B12B CAD Model

Description

The Switchcraft Inc. SN49B12B is a phone jack connector that is designed for use in various electronic applications.

  • Win Source Part Number: 1294283-SN49B12B
  • Pieces Included: 3 (1 connector, 1 nut, and 1 washer)
  • Application: Stereo
  • Conductors: 3
  • Contacts: 3
  • Material: Brass
  • Plating: Nickel
  • Panel Hole Size: 6.35mm (0.250”, 1/4”)
  • Actual Diameter: 0.250” (6.35mm)
  • Material: Thermoplastic
  • Color: Black
